Shop All Replacement Coils
Schneider Electric

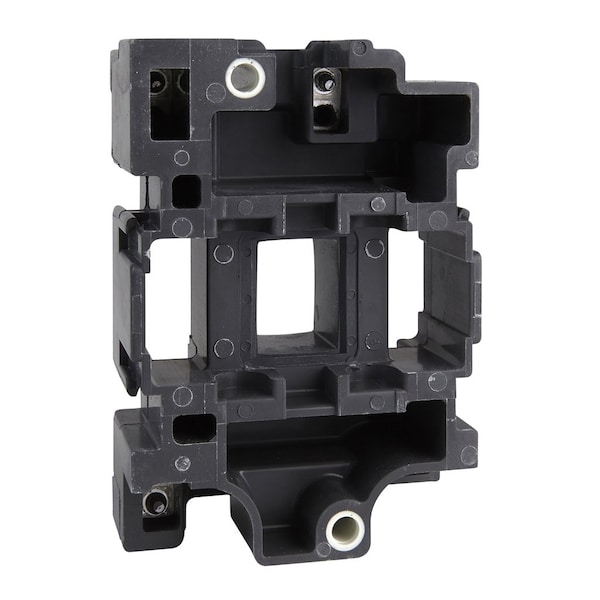

Contactor Coil 220Vac Iec
Mfr # LX1D6M7
Zoro # G0848690
product price: $51.45
/ea
$51.45
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Control Circuit Voltage Limits drop-out 0.3 to 0.6 Uc 50/60 Hz 55 °C) || operational 0.8 to 1.1 Uc 50 Hz 55 °C) || operational 0.85 to 1.1 Uc 60 Hz 55 °C)
- Product Or Component Type contactor coil
- Control Circuit Type AC 50/60 Hz
- Range TeSys
- Product Compatibility LC1D40 || LC1D50 || LC1D65 to D95
Product Information
- Brand Schneider Electric
- MFR # LX1D6M7
- Zoro # G0848690
- UPC # 785901260318
- Country of Origin Czechia
- Category Replacement Coils
Details
| Item | Contactor Coil 220Vac Iec |
| Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 50/60 Hz 55 °C) || operational 0.8 to 1.1 Uc 50 Hz 55 °C) || operational 0.85 to 1.1 Uc 60 Hz 55 °C) |
| Product Or Component Type | contactor coil |
| Control Circuit Type | AC 50/60 Hz |
| Range | TeSys |
| Product Compatibility | LC1D40 || LC1D50 || LC1D65 to D95 |
| Ambient Air Temperature For Operation | -5-60 °C |
| Coil Technology | without built-in suppressor module |
| Mechanical Durability | 4 Mcycles |
| Device Short Name | LX1D6 |
| Inductance Of Closed Circuit | 6.7 H |
| Hold-In Power Consumption In Va | 26-26 VA 60 Hz 0.3 20 °C) || 26-26 VA 50 Hz 0.3 20 °C) |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| [Uc] Control Circuit Voltage | 220 V AC 50/60 Hz |
| Heat Dissipation | 6-10 W 50/60 Hz |
| Average Resistance | 102 Ohm 20 °C |
| Inrush Power In Va | 245-245 VA 60 Hz 0.75 20 °C) || 245-245 VA 50 Hz 0.75 20 °C) |
Description
Contactor Coil 220Vac Iec
