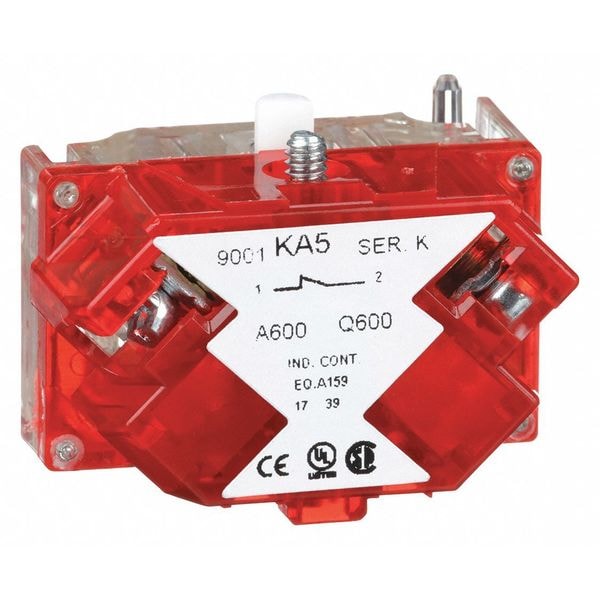

Contact Block, 1NC Late Open, 30mm

Mfr # 9001KA5
Zoro # G2547657

$19.29

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Contact Rating 10A @ 600V AC
For Use With Schneider 9001K Series 30mm Operators
Size 30 mm
Action Momentary
Application Finger Safe Operator

See all product information

Product Information

Brand Schneider Electric
MFR # 9001KA5
Zoro # G2547657
UPC #
785901880103
Country of Origin Mexico
Category Push Button Contact Blocks

Dimensions

Size	30 mm
Manufacturer Warranty Length	18 mo
Connection Size	30 mm

Details

Item	Contact Block
Contact Rating	10A @ 600V AC
For Use With	Schneider 9001K Series 30mm Operators
Action	Momentary
Application	Finger Safe Operator
Contact Form	1NC
Color	Red
Terminal Connection	Screw/Clamp
NEMA Contact Rating Designation	A600/Q600
Standards	CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
Contacts Type And Composition	1 NC
Positive Opening	with IEC 60947-5-2
[Uimp] Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600-Q600 NEMA \|\| 0.55 A 125 V, DC-13, A600-Q600 NEMA
Connections - Terminals	screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÂ² IEC 60947-1, screw-clamp terminals
Device Short Name	9001K
Shape Of Screw Head	cross slotted
Rated Breaking Capacity	3 kA 240 V AC-15, 720 VA \|\| 6 kA 120 V AC-15, 720 VA \|\| 1.2 kA 600 V AC-15, 720 VA \|\| 1.5 kA 480 V AC-15, 720 VA \|\| 0.1 kA 600 V DC-13 \|\| 0.27 kA 250 V DC-13 \|\| 0.55 kA 125 V DC-13
Ambient Air Temperature For Storage	-40-70Â°C
Vibration Resistance	7 gn 2-500 Hz)IEC 60068-2-6
Contact Operation	late-break
Protective Treatment	TC
Short-Circuit Protection	10 A cartridge fuse IEC 60947-5-1
[Us] Rated Supply Voltage	0 to 600 V
Product Or Component Type	contact block
[Icm] Rated Short-Circuit Making Capacity	12 kA 600 V AC-15, 7200 VA \|\| 15 kA 480 V AC-15, 7200 VA \|\| 30 kA 240 V AC-15, 7200 VA \|\| 60 kA 120 V AC-15, 7200 VA \|\| 0.55 kA 125 V DC-13 \|\| 0.1 kA 600 V DC-13 \|\| 0.27 kA 250 V DC-13
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
Contacts Material	silver alloy contacts
Tightening Torque	0.8-0.8 N.m IEC 60947-1
[Ith] Conventional Free Air Thermal Current	10 A
Ambient Air Temperature For Operation	-25-70Â°C
Shock Resistance	50 gn IEC 60068-2-27
Ip Degree Of Protection	IP20 IEC 60529
Electrical Shock Protection Class	class II IEC 61140
Product Certifications	NEMA \|\| UL 508
Terminals Description Iso N°1	(3-4)NO_CL
Terminals Description Iso NÂ°1	(3-4)NO_CL
Terminal Connection Type	Screw Clamp Terminals
Compatible with Series	9001K, 9001SK
Compatible Operator	Push Button
AC Contact Rating	1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Switch Action	Momentary/Late Break

Description

Contact Block, Contact Form 1NC, Contact Rating 10A @ 600V AC, For Use With Schneider 9001K Series 30mm Operators, Action Momentary, 30 mm, Application Finger Safe Operator, NEMA Contact Rating Designation A600/Q600, Color Red, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
