Shop All Enclosure Parts
Schneider Electric

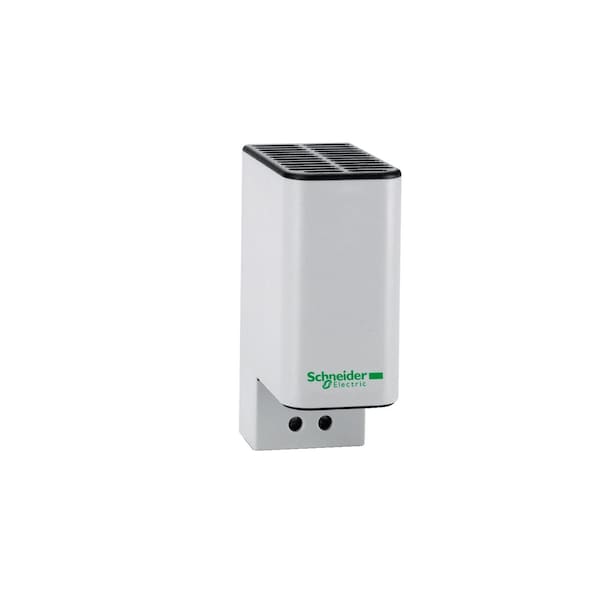

ClimaSys PTC heating resistance 20W, 110-250V insulate
Mfr # NSYCR20WU2C
Zoro # G700422598
product price: $41.15
/ea
$41.15
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material body extruded aluminium, Cover plastic
- Standards VDE, UL
- Height external 98 mm
- Depth external 75 mm
- Width external 38 mm
Product Information
- Brand Schneider Electric
- MFR # NSYCR20WU2C
- Zoro # G700422598
- Country of Origin Spain
- Category Enclosure Parts
Dimensions
| Height | external 98 mm |
| Depth | external 75 mm |
| Width | external 38 mm |
Details
| Item | ClimaSys PTC heating resistance 20W,110- |
| Material | body extruded aluminium, Cover plastic |
| Standards | VDE, UL |
| Ambient Air Temperature For Operation | -40-70°C |
| Condition of Use | heaters must be installed with a thermal controller, air sealed enclosure, electrical protection is needed |
| Range | ClimaSys |
| Input Voltage | 110...250 V AC 50/60 Hz |
| Power Range | 20 W |
| Product or Component Type | resistance heater |
| Product Name | ClimaSys CR |
| Fixing Mode | by clips |
| Ip Degree of Protection | IP20 |
| Operating Position | vertical |
| Mounting Support | 35 mm DIN rail |
| Electrical Connection | 4 screw terminals 2.5 mm² |
| Electrical Insulation Class | class II |
Description
ClimaSys PTC heating resistance insulate. 20W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm2. 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
