Shop All Push Button Switches
Schneider Electric

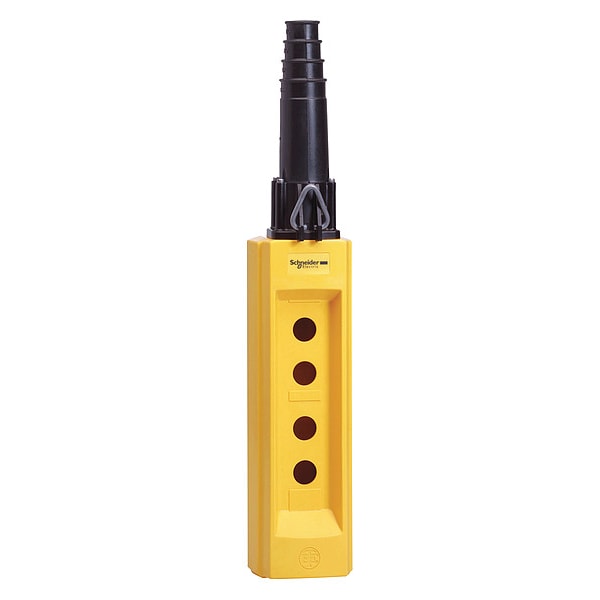

4 Button Pendant W/O Ko In Base
Mfr # XACB04
Zoro # G0862060
original price:
$309.00
14% off
new price: $262.99
/ea
Free Shipping & Returns
$262.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Standards CSA C22.2 No 14 || EN/IEC 60947-5-1
- Enclosure Material glass reinforced polyester
- Ambient Air Temperature For Operation -25-70°C
- Shock Resistance 100 gn IEC 60068-2-27
- Vertical Operator Cut-Out Centre 40 mm
Product Information
- Brand Schneider Electric
- MFR # XACB04
- Zoro # G0862060
- UPC # 785901289333
- Country of Origin Czechia
- Category Push Button Switches
Details
| Item | Pendant Push Button |
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 |
| Enclosure Material | glass reinforced polyester |
| Ambient Air Temperature For Operation | -25-70°C |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Vertical Operator Cut-Out Centre | 40 mm |
| Control Station Type | double insulated |
| Ik Degree Of Protection | IK08 EN 50102 |
| Control Station Colour | yellow |
| Product Certifications | CSA type 4 |
| Number Of Cut-Out | 4 cut-outs |
| Product Or Component Type | pendant control station |
| Overvoltage Category | class II IEC 61140 |
| Electrical Circuit Type | power circuit || control circuit |
| Ambient Air Temperature For Storage | -40-70°C |
| Mechanical Durability | 1000000 cycles |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Device Short Name | XACB |
| Protective Treatment | TH |
| Cable Entry | rubber sleeve with stepped entry 10-22 mm |
| Enclosure Type | empty enclosure |
| Guard Rail | Without |
Description
Pendant Push Button
