Shop All Shaft Collars
Ruland

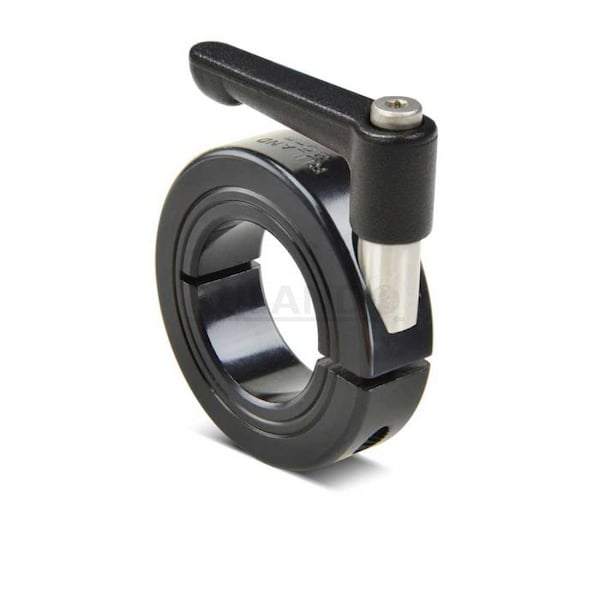

SHAFT COLLAR QUICK CLAMPING
Mfr # LV-MCL-14-F
Zoro # G808677340
product price: $32.99
/ea
$32.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Screw Material Stainless Steel
- Width Tolerance +0.076/-0.254 mm
- Bore Tolerance +0.050/+0.012 mm
- Standards Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- System of Measurement Metric
Product Information
- Brand Ruland
- MFR # LV-MCL-14-F
- Zoro # G808677340
- Country of Origin United States
- Category Shaft Collars
Dimensions
| Width Tolerance | +0.076/-0.254 mm |
| Lever Height | 32 mm |
| Bore Diameter | 14 mm |
| Collar Outside Diameter | 30 mm |
| Collar Width | 13 mm |
| Lever Length | 30 mm |
| Screw Thread Size | M4 |
| For Shaft Diameter | 14 mm |
Description
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 14 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion Resistant, Screw Seating Torque 4.6 N-m
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
