Ruland

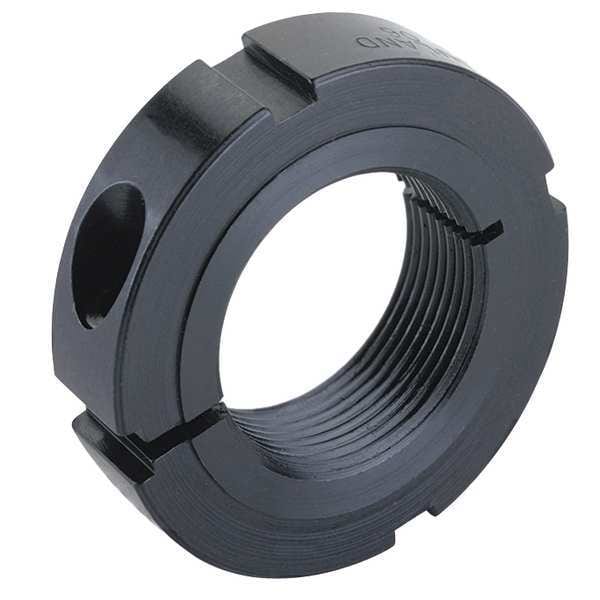

Shaft Collar, Locknut, 1Pc, 0.781-32 In, St
Mfr # TCN-04-F
Zoro # G9685681
original price:
$18.45
10% off
new price: $16.59
/ea
$16.59
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bore Dia. 0.781"-32
- Material Black Oxide 1215 Lead Free Steel
- Number of Pieces 1
- Collar Style Bearing Locknut
- Outside Dia. 1 5/8 in
Product Information
- Brand Ruland
- MFR # TCN-04-F
- Zoro # G9685681
- UPC # 634529028896
- Country of Origin United States
- Category Shaft Collars
Dimensions
Bore Dia. | 0.781"-32 |
Outside Dia. | 1 5/8 in |
Dimension Type | Inch |
Width | 7/16 in |
Screw Size | M5 x 16 |
Screw Thread Size | M5x16 |
Bore Thread Size | 0.781" - 32 TPI |
Bore Diameter | 0.781 in |
Nut Width | 7/16 in |
Face Diameter | 1 1/8 in |
Nut Outside Diameter | 1 5/8 in |
Industry Standard Size | N04 |
Description
Shaft Collar, Industry Standard Size N04, Bore Thread Size 0.781 In. - 32 TPI, Nut Outside Diameter 1 5/8 in, Face Diameter 1 1/8 in, Nut Width 7/16 in, Bearing Face Maximum TIR 0.0005 in, Nut Material Carbon Steel, Nut Material Grade 1215, System of Measurement Inch, Resistance Properties Corrosion Resistant, Screw Location from Center 0.57 in, Screw Material Alloy Steel, Maximum Operating Temperature 350 Degrees F, Minimum Operating Temperature -40 Degrees F
