Shop All Jaw Type Couplings
Ruland

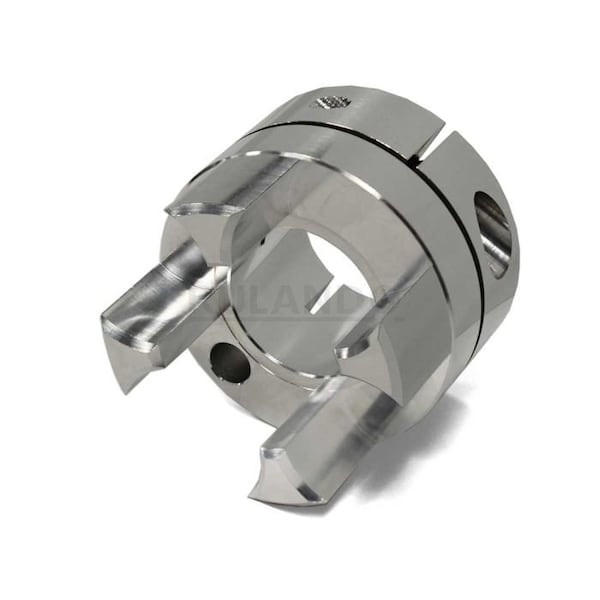

Jaw Coupling Hub
Mfr # JC50-20-A
Zoro # G108674957
product price: $107.99
/ea
Free Shipping & Returns
$107.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coupling Size JC50
- Maximum Bore Diameter 1 1/4 in
- Bore Diameter 1 1/4 in
- Hub Material Aluminum
- Hub Material Grade 2024
Product Information
- Brand Ruland
- MFR # JC50-20-A
- Zoro # G108674957
- Country of Origin United States
- Category Jaw Type Couplings
Dimensions
| Coupling Size | JC50 |
| Maximum Bore Diameter | 1 1/4 in |
| Bore Diameter | 1 1/4 in |
| Outside Diameter | 3 1/8 in |
| Coupling Overall Length | 1 19/32 in |
Details
| Item | Jaw Coupling Hub |
| Hub Material | Aluminum |
| Hub Material Grade | 2024 |
| Fail Safe | Yes |
| Shaft Locking Type | Clamp On |
| Standards | REACH Compliant, RoHS3 Compliant |
| Maximum Speed | 8,000 RPM |
| Bore Tolerance | +0.001/-0.000 in |
| Jaw Profile | Curved |
| Minimum Operating Temperature | -10 Degrees F |
| System of Measurement | Inch |
| Maximum Operating Temperature | 180 Degrees F |
| Zero Backlash | Yes |
| Features | Balanced Design, Replaceable Spider |
Description
Jaw Coupling Hub, Coupling Size JC50, Outside Diameter 3 1/8 in, Coupling Overall Length 1 19/32 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 1 1/4 in, Shaft Locking Type Clamp On, Jaw Profile Curved, Bore Tolerance +0.001/-0.000 in, Fail Safe Yes, Features Balanced Design, Replaceable Spider, Hub Material Grade 2024
