Rosta

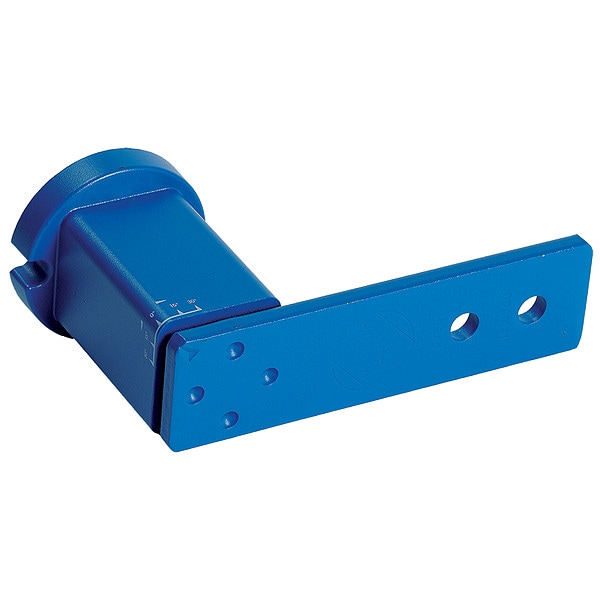

Elastomeric Tensioner, 50 mm Arm Width

product price: $120.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Belt Width 2 11/64 in
  • Arm Material Steel
  • Arm Width 50 mm
  • Maximum Operating Temperature 180 Degrees F
  • Arm Rotation 30 Degrees
See all product information

Product Information

Dimensions

For Belt Width 2 11/64 in
Arm Width 50 mm
Arm Length to End 155 mm
Idler Bolt Thread Size M12
Arm Length to Hard Position Hole 100 mm
Arm Length to Normal Position Hole 130 mm
Mounting Bolt Thread Size M12

Details

Item Elastomeric Tensioner
Arm Material Steel
Maximum Operating Temperature 180 Degrees F
Arm Rotation 30 Degrees
Minimum Operating Temperature -40 Degrees F
Insert Material Rubber
Maximum Travel at 30 Degrees 2.56 in
Features Automatic Re-Tensioning, Best Possible Transfer of Power, Compensation for Belt Elongation, Pressing, Guiding and Vibration Damping, Quiet and Smooth Running
Application Chain and Belt Drives
Maximum Travel at 20 Degrees 1.73 in
Idler Hole System of Measurement Metric
Housing Material Steel
Tension Force at Normal Position 810 N
Travel at Hard Position 50 N
Finish Painted
Tension Force at Hard Position 1050 N
Travel at Normal Position 65 N

Description

Elastomeric Tensioner, Application Chain and Belt Drives, Arm Length to End 155 mm, Arm Length to Hard Position Hole 100 mm, Arm Length to Normal Position Hole 130 mm, Arm Material Steel, Arm Rotation 30 Degrees , Arm Width 50 mm, Features Automatic Re-Tensioning, Best Possible Transfer of Power, Compensation for Belt Elongation, Pressing, Guiding and Vibration Damping, Quiet and Smooth Running, Finish Painted, For Belt Width 2 11/64 in, Housing Material Steel, Idler Bolt Length Not Applicable
