Shop All Blocks, Sheaves & Pulleys
Ronstan

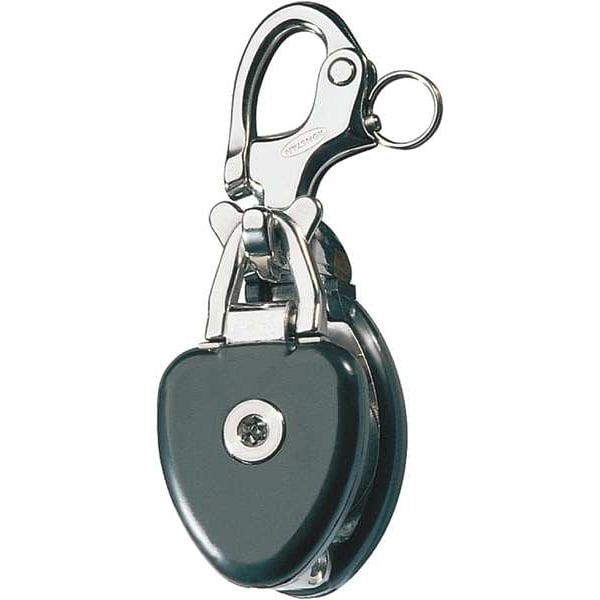

Snatch Block, Fibrous Rope, 5/8 in Max Cable Size, 3,530 lb Max Load, Natural
Mfr # RF6730
Zoro # G2493696
product price: $173.99
/ea
Free Shipping & Returns
$173.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Max. Cable Size 5/8"
- Designed For Fibrous Rope
- Attachment Type Snap Shackle
- Rope Dia. 5/8 in
- Working Load Limit 2,980 lb
Product Information
- Brand Ronstan
- MFR # RF6730
- Zoro # G2493696
- Country of Origin Australia
- Category Blocks, Sheaves & Pulleys
Dimensions
Max. Cable Size | 5/8" |
Rope Dia. | 5/8 in |
Eye Hook Inside Dia. | 25/32 in |
Mounting Hole Dia. | 3/4 in |
Sheave Width | 23/32 in |
Sheave Outside Dia. | 1 3/4 in |
Rope Diameter | 5/8 in |
Overall Width | 54 1/2 mm |
Sheave Inside Diameter | 1 15/32 in |
Sheave Depth | 23/32 in |
Overall Depth | 52 1/2 mm |
Compatible Rope Diameter | 5/8 in |
Overall Height | 152 mm |
Attachment Inside Diameter | 16 mm |
Sheave Outside Diameter | 1 3/4 in |
Description
Pulley Block, Product Type Snatch Pulley Block, Pulley Type Swivel, Mount Type Not Applicable, Working Load Limit 2,980 lb, Operation Pulling, Attachment Type Snap Shackle, Compatible Rope Diameter 5/8 in, Sheave Inside Diameter 1 15/32 in, Sheave Depth 23/32 in, Sheave Outside Diameter 1 3/4 in, Compatible Rope Type Fibrous Rope, Bearing Type Roller, Attachment Inside Diameter 16 mm, Housing Material 316 Stainless Steel, Mounting Hole Diameter Not Applicable, Number of Grooves 1
