Shop All Sensor Cordsets & Receptacles
Remke

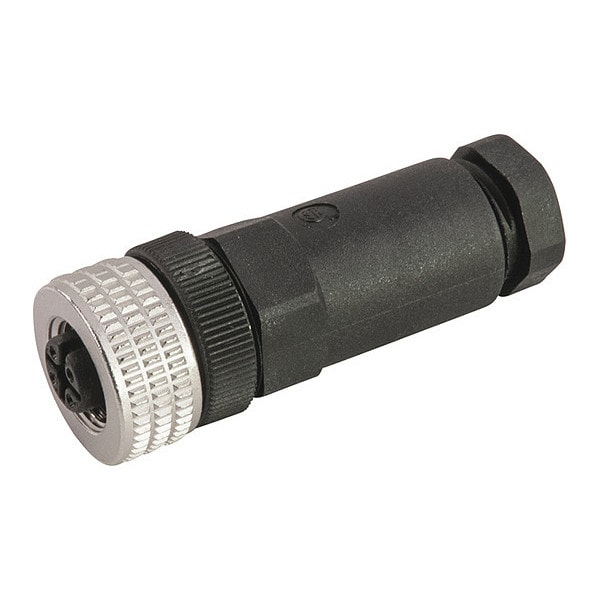

Field Attachable, Single Key, 5 Pole, F, PG9
Mfr # 305AFW9
Zoro # G7220059
product price: $25.19
/ea
Sold in multiples of 3 for $75.57
$75.57
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Body Material Nylon
- IP Rating IP67
- NEMA Rating 6P
- Current Rating (amps) 4
- Voltage Rating (AC) 30
Product Information
- Brand Remke
- MFR # 305AFW9
- Zoro # G7220059
- Country of Origin Germany
- Category Sensor Cordsets & Receptacles
Dimensions
Width (in) | 0.79 |
Length (in) | 2.36 |
Details
Item | Field Attachable,Single Key,5 Pole,F,PG9 |
Body Material | Nylon |
IP Rating | IP67 |
NEMA Rating | 6P |
Current Rating (amps) | 4 |
Voltage Rating (AC) | 30 |
Contact Carrier Material | Nylon |
Connector Style | MicroLink Single Key |
Coupling Nut Plating | Nickel Plated |
Coupling Nut Material | Brass |
Minimum Operating Temperature (F) | -13 |
O-Ring Material | Nitrile Rubber |
Cable Entry Type | PG9 |
Insert Material | Nylon |
Maximum Operating Temperature (F) | 194 |
Contact Resistance (Micro Ohms) | 5 |
Cordset Configuration | Straight |
Voltage Rating (DC) | 36 |
Poles | 5 |
Thread 1 | M12X1 |
Contact Material | Copper Alloy, Gold Plated" |
Description
Field Attachable,Single Key,5 Pole,F,PG9
