Regal Beloit

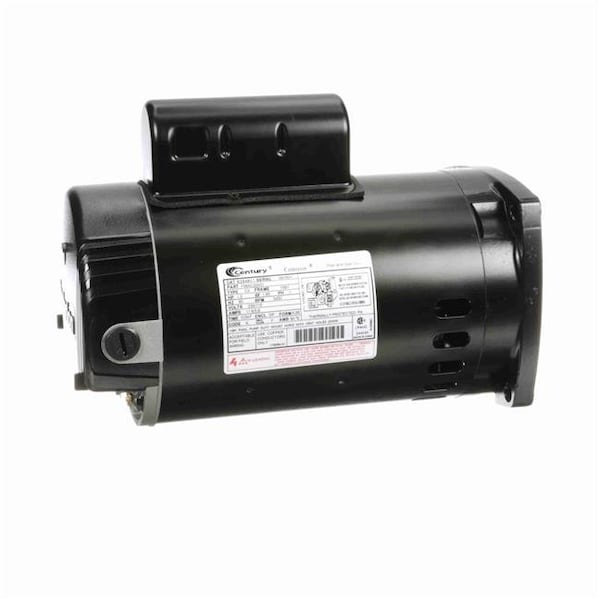

Regal Beloit B2848V1 1.65 SF 1HP Full Rated Flanged Motor

product price: $300.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns


Product Information

Description

Features
  • Sealed Ball Bearings
  • 50°C Ambient
  • Stainless Steel Shaft, Switchless
  • UL 1081 Design
  • Open Dripproof
  • Threaded Shaft
  • Permanent Split Capacitor
  • Compare Product
Specifications
  • Output HP: 1.0 Hp
  • Frequency: 60 Hz
  • Current: 11.8/5.9 A
  • Service Factor: 1.65
  • Duty: Continuous
  • Frame: Y56Y
  • Thermal Protection: Thermally Protected
  • UL: Recognized
  • Output KW: 0.75 kW
  • Voltage: 115/230 V
  • Speed: 3450 rpm
  • Phase: 1
  • Insulation Class: F
  • Enclosure: Drip Proof
  • Ambient Temperature: 50 °C
  • Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
  • Rotation: Counterclockwise Pump End
  • Motor Orientation: Horizontal
  • Opp Drive End Bearing: Ball
  • Shaft Type: 1/2 Threaded
  • Frame Length: 8.50 in
  • Shaft Extension: 0.91 in
  • Poles: 2
  • Mounting: Square Flange
  • Drive End Bearing: Ball
  • Frame Material: Rolled Steel
  • Overall Length: 12.95 in
  • Shaft Diameter: 0.625 in
