Shop All Spherical Rod Ends
Qa1

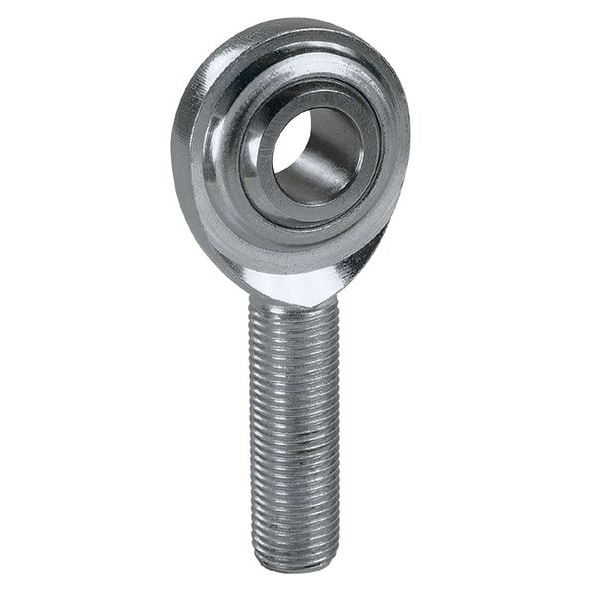

Male Rod End, SS, LH, 3/8-24
Mfr # GML6T
Zoro # G6227776
product price: $12.99
/ea
$12.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
Product Information
- Brand Qa1
- MFR # GML6T
- Zoro # G6227776
- UPC # 806990002785
- Country of Origin China
- Category Spherical Rod Ends
Dimensions
Thread Size | 3/8"-24 |
Inside Dia. | 0.375/0.377 in |
Dimension J | 2.438 in |
Dimension A | 3/8"-24 |
Dimension G | 1.938 in |
Dimension E | 1.0 in |
Dimension H | 1.25 in |
Dimension N | 0.5 in |
Dimension AA | 0.375/0.377 in |
Inner Ring Width | 0.5 in |
Head Outside Diameter | 1 in |
Head Width | 0.359 in |
Shank Thread Size | 3/8"-24 |
Overall Length | 2 7/16 in |
Shank Thread Length | 1 1/4 in |
Bore Diameter | 3/8 in |
Bore Diameter Tolerance | +0.0015/-0.0005 in |
Ball Diameter | 0.719 in |
Description
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/8 in, Head Outside Diameter 1 in, Head Width 0.359 in, Shank Thread Length 1 1/4 in, Shank Thread Size 3/8 In.-24, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.719 in, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.0015/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.5 in, Maximum Ball Swivel 22 Degrees
