Pro1 Iaq

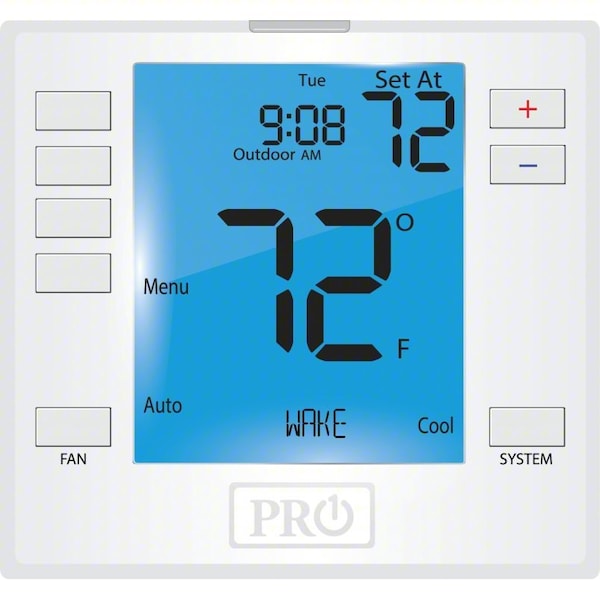

Non-Programmable Thermostat, 7, 5-1-1 Programs, 3 H 2 C, Wall Mount, Hardwired/Battery, 24VAC

product price: $188.02
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24VAC
  • Stages Heat 3
  • Mounting Type Horizontal or Vertical
  • Mounting Location Wall
  • Color White
See all product information

Product Information

Dimensions

Height 4 13/32"
Width 4 45/64"
Display Size 6 sq in
Depth 1 7/64 in
Screen Width 6 in
Digit Size Easy Read
Overall Depth 1 1/8 in
Screen Height 6 in
Overall Height 4 3/8 in
Overall Width 4 11/16 in

Details

Item Non-Programmable Thermostat
Voltage 24VAC
Stages Heat 3
Mounting Type Horizontal or Vertical
Mounting Location Wall
Color White
Control Range 44 Degrees to 90 Degrees F
System Switching Heat-Cool-Off-Emergency
Stages Cool 2
Dual Transformer Compatible Yes
Power Method Hardwired/Battery
750mV Compatible Yes
Programs per Week 7, 5-1-1
Temperature Limiting Yes
Remote Sensing Capability Yes
Filter Indicator Yes
Battery Backup Yes
Batteries Included Yes
Display Color Blue
Includes 2 AA Batteries, Manual/Install Guide, Screws and Wall Anchors
Terminal Designations RC, RH, C, O, B, G, Y, Y2, W/E, W2, S1, S2
Low Battery Indicator Yes
Dehumidification Control No
Temp. Settings per Day 1, 4
Automatic Changeover No
Key Pad Lockout No
For Use With Heating and Cooling
Temporary Program Override Yes
Fan Switching Auto-on
Programmable Fan Yes
Humidification Control No
WiFi Capability No
Display Type Large Character
Features Remote Sensing Universal 3H/2C
Temporary Temperature Hold Yes
Control Type Push Button
Stages 2H/2C Conventional, 3H/2C Heat Pump
Minimum Operating Temperature 32 Degrees F
Filter Change Reminder Yes
Includes Positive Off Yes
Minimum Control Temperature 44 Degrees F
System/Fan Settings Cool-Emergency Heat-Heat-Off/Auto-On
Mounting Direction/Shape Square
System Settings Cool-Emergency Heat-Heat-Off
Programming Capability 5-1-1, 7 Day
Temperature Differential 0.2 Degrees to 2.0 Degrees F
Operating Temperature Range 32 Degrees to 105 Degrees F
Temperature Sensitivity +/-1 Degrees F
Changeover Type Automatic
Sensor Location Remote
Fan Settings Auto-On
Application Heat and Cool
Millivolt Compatible Yes
Shape Square
Frequency 50 Hz, 60 Hz
Includes Batteries Yes
Differential Cool 0.2 Degrees F, 2 Degrees F
Maximum Operating Temperature 105 Degrees F
Number of Heating Stages - Conventional System 2
Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Millivolt
Temperature Scale Fahrenheit/Celsius
Temperature settings per day 1, 4
Mounting Direction Horizontal; Vertical
Application/Stages Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump
Number of Heating Stages - Heat Pump System 3
Electrical Connection Type Hardwired
Number of Cooling Stages - Conventional System 2
Smart Connectivity No Connectivity
Battery Type (2) AA Batteries
Maximum Operating Humidity 90 %
Differential Type Adjustable
Temperature Control Range 44 Degrees to 90 Degrees F
Thermostat Type Low Voltage
Housing Color White
Backlit Screen Yes
Backlit Screen Color Blue
Maximum Control Temperature 90 Degrees F
Differential Heat 0.2 Degrees F, 2 Degrees F
Number of Cooling Stages - Heat Pump System 2
Temperature Readout Yes

Description

Low Voltage Thermostat, Stages Heat 3, Stages Cool 2, Temp. Settings per Day 1, 4, Programs per Week 7, 5-1-1, or Nonprogrammable, Terminal Designations B, C, G, O, RC, RH, S1, S2, W/E, W2, Y, Y2, WiFi Capability No, System Switching Heat-Off-Cool-Emergency, Fan Switching Auto-On, Display Size 6 sq in, Display Type Backlit, Display Color Blue, Key Pad Lockout No, Programmable Fan Yes, Automatic Changeover No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability Yes
