Shop All Set Screws
Prime-Line

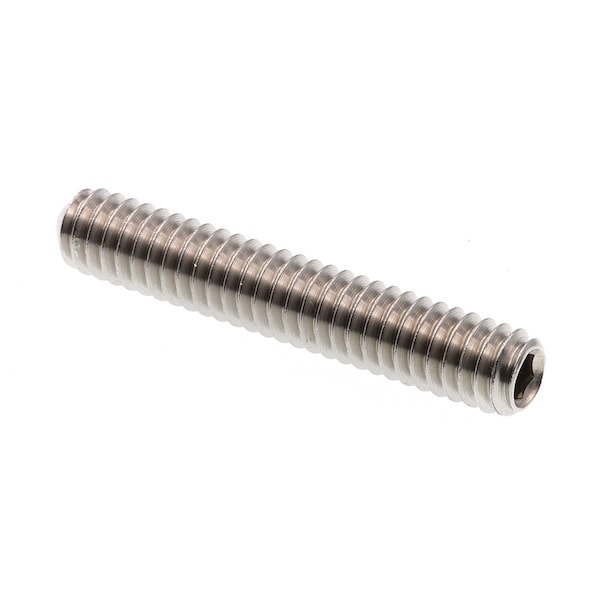

Socket Set Screw 1/4in-20 X 1-1/2in Grade 18-8 Stainless Steel 10PK
Mfr # 9183803
Zoro # G000933909
$8.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
Hex Drive
- System of Measurement Inch
- Thread Size 1/4"-20
- Drive Size 1/4 in.-20 X 1-1/2 in.
- Point Type Cup
- Material Stainless Steel
Product Information
- Brand Prime-Line
- MFR # 9183803
- Zoro # G000933909
- UPC # 49793197566
- Country of Origin Taiwan, Province of China
- Category Set Screws
Dimensions
Thread Size | 1/4"-20 |
Overall Length | 1-1/2 in |
Drive Size | 1/4 in.-20 X 1-1/2 in. |
Size | 1/4"-20 X 1-1/2" |
Details
System of Measurement | Inch |
Drive Type | Hex |
Point Type | Cup |
Material | Stainless Steel |
Finish | Plain |
Item | Set Screw |
Number of Pieces | 10 |
Meets/Exceeds | ASME B18.3 & ASME B1.1 |
Fastener Thread Type | Coarse |
Fastener Thread Direction | RIGHT HAND |
Class | UNC-3A |
Description
Socket set cap screws have cup points that produce a thin edge that digs into hard surfaces for a secure hold. This fastener is headless and contains an internal hex drive. Use an Allen wrench (hex key) to secure with required torque as needed. Although often used in machinery, they can be found around the home as well to secure window crank handles to window operators or to hold interior door knobs to spindles. Length is measured from the top of the fastener to the base of the cup point.
- •Size: 1/4 inch-20 X 1-1/2 inch
- •Headless screw that sits flush or below the surface once installed
- •Internal socket drive requires Allen wrench (hex key) to install
- •Installs into an internally threaded hole to hold an object into place
- •Often used in machinery to secure gears to shafts
