Shop All Hex Head Cap Screws
Prime-Line

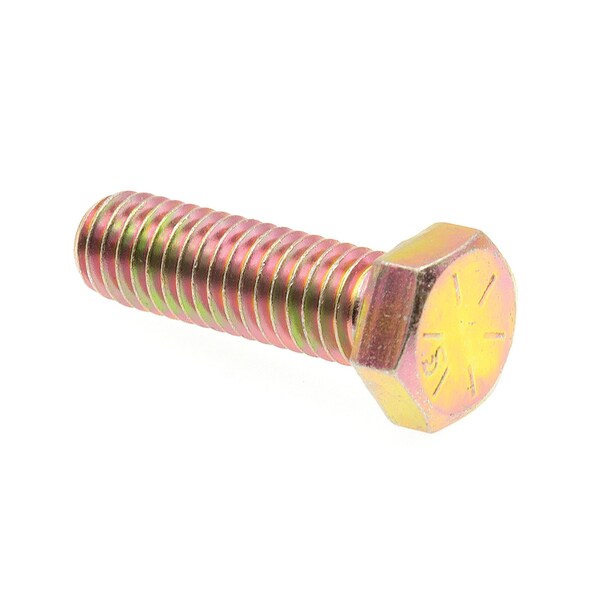

Hex Head Cap Screw, Grade 8 3/8-16in X 1-1/4in Grade 8 Yellow Zinc Plated Steel 25PK
Mfr # 9105219
Zoro # G300921200
product price: $15.15
/pk 25, $0.61/ea
$15.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
External Hex Drive
Grade 8 Material Grade/Class
- System of Measurement Inch
- Head Width 9/16 in
- Material Steel
- Finish Zinc Yellow
- Thread Style Fully Threaded
Product Information
- Brand Prime-Line
- MFR # 9105219
- Zoro # G300921200
- UPC # 49793180667
- Country of Origin China
- Category Hex Head Cap Screws
Dimensions
| Thread Size | 3/8"-16 |
| Fastener Length | 1-1/4 in |
| Head Width | 9/16 in |
Details
| System of Measurement | Inch |
| Drive | External Hex |
| Material Grade/Class | Grade 8 |
| Material | Steel |
| Finish | Zinc Yellow |
| Thread Style | Fully Threaded |
| Thread Direction | Right Hand |
| Standards | ASME B 18.2.2, ASME B1.1, & SAE J429 |
| Item | Hex Head Cap Screw |
| Thread Type | Coarse |
| Number of Pieces | 25 |
Description
Hex head cap screws are similar to hex bolts, but feature a washer surface under the head and have a chamfered end (as opposed to the flat end seen on hex bolts). They are often called finished hex bolts. The 6 sided head makes them easy to install using a standard wrench or socket set. Size: 3/8-16 inch X 1-1/4 inch Hex bolt with a chamfered end and washer face under the head Designed for use with a nut or a threaded hole of the same diameter and thread size Often called finished hex bolt Nuts not included Thread Type: Coarse, Thread Class: UNC-2A, Point Style: Blunt Specification(s) Met: ASME B 18.2.2, ASME B1.1, & SAE J429
