Shop All Flange Bolts
Prime-Line

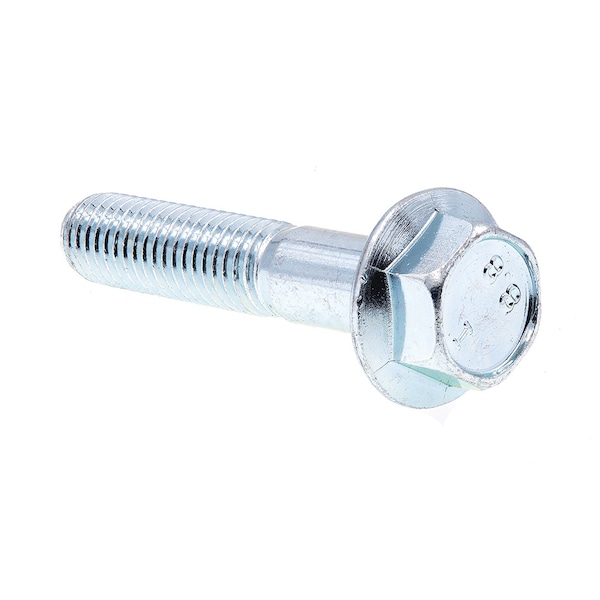

Flange Bolts, Class 8.8 Metric M10-1.50 X 50MM Zinc Plated Steel 25PK
Mfr # 9089639
Zoro # G800934359
product price: $38.65
/pk 25, $1.55/ea
$38.65
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
Hex Drive
Class 8.8 Material Grade/Class
- System of Measurement Metric
- Thread Size M10-1.50
- Fastener Length 50 mm
- Head Width 15 mm
- Material Steel
Product Information
- Brand Prime-Line
- MFR # 9089639
- Zoro # G800934359
- UPC # 49793180032
- Country of Origin Taiwan, Province of China
- Category Flange Bolts
Dimensions
| Thread Size | M10-1.50 |
| Fastener Length | 50 mm |
| Head Width | 15 mm |
Details
| System of Measurement | Metric |
| Drive | Hex |
| Material Grade/Class | Class 8.8 |
| Material | Steel |
| Finish | Zinc Plated |
| Thread Style | Partially Threaded |
| Thread Direction | Right Hand |
| Standards | DIN 6921 & ISO 898-1 |
| Item | Flange Bolt |
| Head Style | Flange Hex |
Description
Flange bolts feature a built in washer under the bolt head that helps to distribute the clamping load over a larger area. This "one-piece" design eliminates the need of a separate washer under the bolt head and is preferable for some applications as it can be more efficient and easier to use. A washer is still needed on the nut side unless using a flange nut.
- •Size: M10-1.50 X 50MM
- •Hex bolt with a circular flange under the head
- •Flange eliminates need for separate washer
- •Designed for use with a nut or a threaded hole of the same diameter and thread size
- •Nuts not included
