  11. Female Disconnect, Red, 22-16AWG, PK25
Shop All Wire Disconnects
Power First

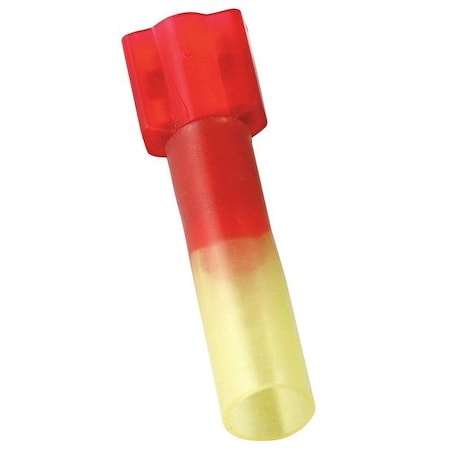

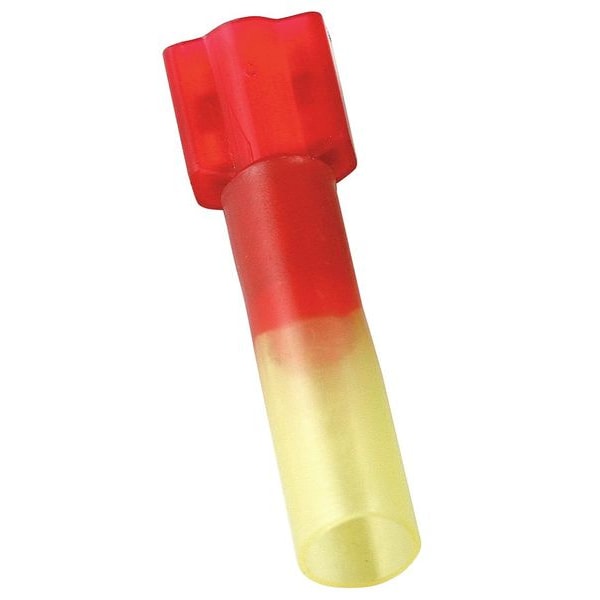

Female Disconnect, Red, 22-16AWG, PK25

product price: $16.15
/pk 25, $0.65/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Red
  • Connection Type Crimp
  • Wire Range 22 to 16 AWG
  • Insulation Type Heat Shrink
See all product information

Product Information

Dimensions

Overall Length 1.437 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.067 in
Barrel Outside Diameter 0.256 in
Strip Length 1/4 in
Maximum Wire Size 16 AWG
Barrel Size Standard
Minimum Wire Size 22 AWG
Barrel Inside Diameter 0.067 in
Tab Width 0.25 in

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Polyolefin, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
