Pneumadyne

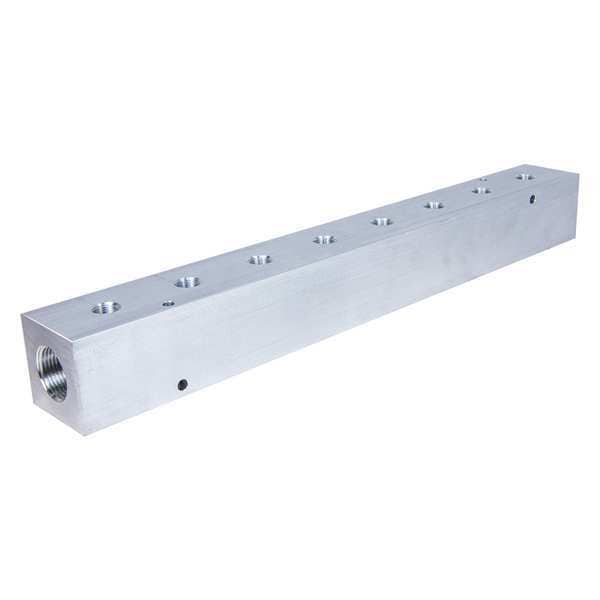

Manifold, Aluminum, 8 Outlets, 18-3/4" L

product price: $137.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Fitting Material Aluminum
  • Number of Inlets 2
  • Number of Outlets 8
  • Inlet Size 1 in
  • Outlet Size 1/2 in
See all product information

Product Information

Dimensions

Inlet Size 1 in
Outlet Size 1/2 in
Overall Length 18.75 in
Overall Width 2.25 in
Overall Height 2.25 in
Mounting Hole Size 0.26 in
Mounting Hole Diameter 0.26 in
Outlet Connection Size 1/2 in
Inlet Connection Size 1 in

Details

Item Manifold
Pipe Fitting Material Aluminum
Number of Inlets 2
Number of Outlets 8
Fitting Connection Type NPT
Temp. Range -10 Degrees to 200 Degrees F
Max. Pressure 3000 psi
Pipe Fitting Connection Type NPT
Manifold Material Aluminum
Maximum Operating Pressure 3,000 psi
Number of Mounting Holes 2
Inlet Connection Type NPT
For Potable Water Use Yes
Manifold Material Grade 6061
Outlet Spacing 2 1/4 in
Manifold Shape Rectangle
Maximum Operating Temperature 200 Degrees F
Outlet Connection Type NPT
Minimum Operating Temperature -10 Degrees F
Resistance Properties Corrosion Resistant
Inlet Connection Gender Female
For Fluid Type Fluid, Gas
Flow Direction Inline
Outlet Connection Gender Female

Description

Manifold, Flow Direction Inline, For Fluid Type Fluid, Gas, Inlet Connection Gender Female, Inlet Connection Size 1 in, Inlet Connection Type NPT, Manifold Material Aluminum, Manifold Material Finish Not Applicable, Manifold Material Grade 6061, Maximum Operating Pressure 3,000 psi, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature -10 Degrees F, Number of Inlets 2, Number of Mounting Holes 2, Number of Outlets 8, Outlet Connection Gender Female

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
