Shop All Relief Valves
Plast-O-Matic

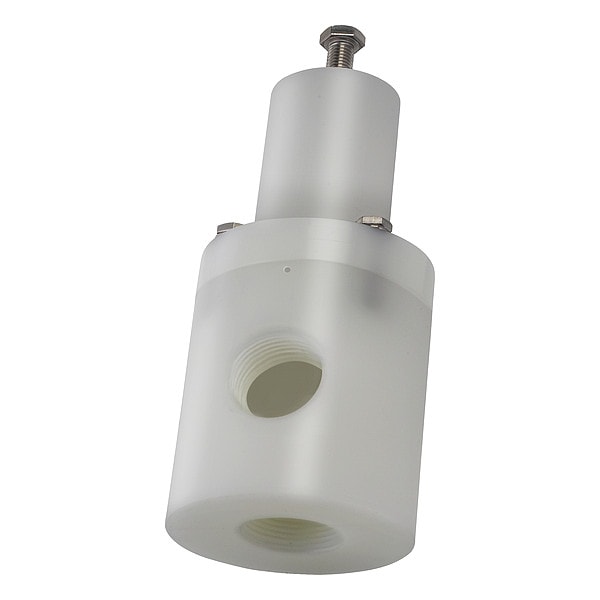

Pressure Relief Valve, 1/4In, 5 to 100 psi
Mfr # RVD025V-PP
Zoro # G4121451
product price: $264.99
/ea
Free Shipping & Returns
$264.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Inlet Size 1/4"
- Outlet Size 1/4"
- Body Material Polypropylene
- Outlet Type FNPT
- Inlet Type FNPT
Product Information
- Brand Plast-O-Matic
- MFR # RVD025V-PP
- Zoro # G4121451
- Country of Origin United States
- Category Relief Valves
Dimensions
Inlet Size | 1/4" |
Outlet Size | 1/4" |
Overall Height | 5 1/8 in |
Overall Length | 2 in |
Details
Body Material | Polypropylene |
Item | Adjustable Back Pressure Relief Valve |
Outlet Type | FNPT |
Inlet Type | FNPT |
Test Lever | No |
Temp. Range | 32 Degrees to 180 Degrees F |
Application | Corrosives |
Pressure Range | 5 to 100 psi |
Seat Material | Viton |
Spring Material | Zinc-Plated Steel |
Factory Set Pressure | 100 psi |
Description
Adjustable Back Pressure Relief Valve, Body Material Polypropylene, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1/4 in, Outlet Size 1/4 in, Pressure Range 5 to 100 psi, Overall Height 5 1/8 in, Application Corrosives, Overall Length 2 in, Seat Material Viton, Spring Material Zinc-Plated Steel, Temp. Range 32 Degrees to 180 Degrees F, Test Lever No
