Shop All Linear Sleeve Bearing
Pbc Linear

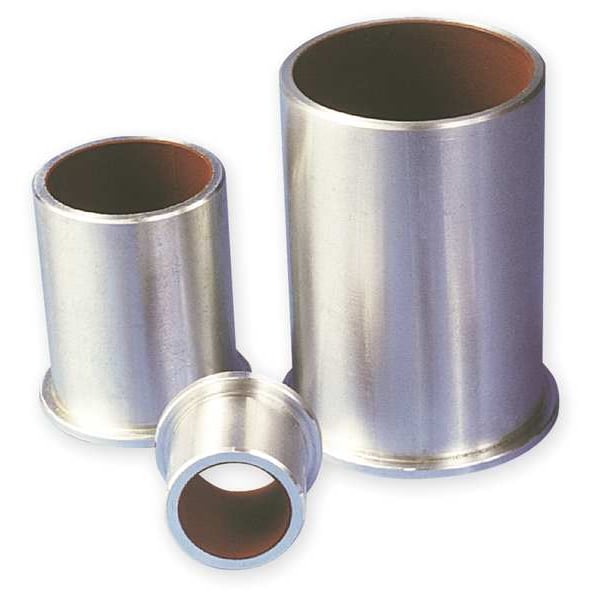

Linear Sleeve Flange Bearing, ID 1/4 In
Mfr # PSF0406-03
Zoro # G0784673
product price: $21.95
/ea
$21.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Inside Dia. 1/4 in
- Outside Dia. 3/8 in
- Material Aluminum
- Dimension L 0.365 in
- Lubrication Self Lubricating
Product Information
- Brand Pbc Linear
- MFR # PSF0406-03
- Zoro # G0784673
- Country of Origin United States
- Category Linear Sleeve Bearing
Dimensions
Inside Dia. | 1/4 in |
Outside Dia. | 3/8 in |
Dimension L | 0.365 in |
Outside Dia. Tolerance | +/-0.001 |
Flange Dia. | 1/2 in |
Inside Dia. Tolerance | +/-0.001 |
Dimension B | 0.377 in |
Dimension C | 0.5 in |
Length | 3/8 in |
Outside Diameter | 3/8 in |
Overall Length | 3/4 in |
Flange Diameter | 1/2 in |
Inside Diameter | 1/4 in |
Description
Linear Sleeve Bearing, System of Measurement Inch, Inside Diameter 1/4 in, Outside Diameter 3/8 in, Overall Length 3/4 in, Static Load Capacity 268 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series PSF, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter 1/2 in, Flange Thickness 1/16 in, Recommended Housing Bore 0.377 in, Maximum PV 20,000 lb/sq in-fpm, Color Not Applicable
