  9. Retention Knob, ANSI/ISO, 5/8-11, 45 Deg
Shop All Toolholder Accessories
Parlec

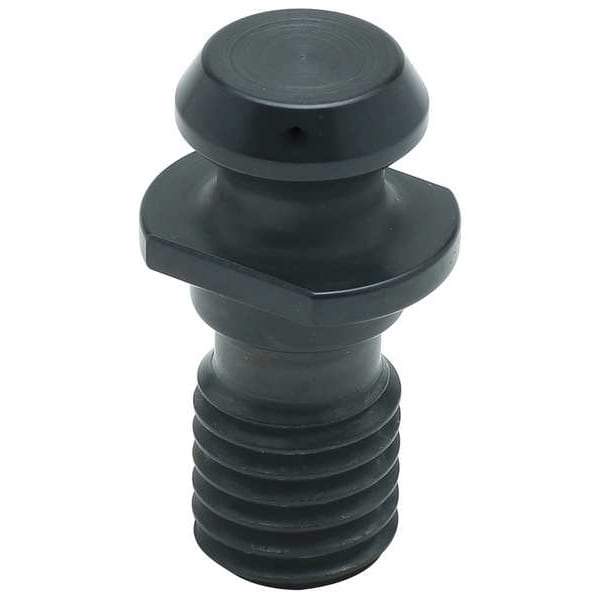

Retention Knob, ANSI/ISO, 5/8-11, 45 Deg

product price: $21.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Knob Dia. 0.740"
  • Flange to Angle Length 0.4400 in
  • Flange to Knob Length 0.440 in
  • Angle 45 Degrees
  • Thread Size 5/8"-11
See all product information

Product Information

Dimensions

Knob Dia. 0.740"
Flange to Angle Length 0.4400 in
Flange to Knob Length 0.440 in
Thread Size 5/8"-11
Taper Size 40
Neck Dia. 0.4900 in
Overall Length 1-1/2 in
Knob Outside Dia. 0.7400 in
Angle Radius 45 Degrees

Details

Item Retention Knob
Angle 45 Degrees
Coolant Fed Non-Coolant Through
Standards ANSI Solid

Description

Retention Knob, Taper Size 40, Thread Size 5/8 In.-11, Angle Radius 45 Degrees , Knob Outside Dia. 0.7400 in, Coolant Fed Non-Coolant Through
