Shop All Solenoid Air Control Valves
Parker

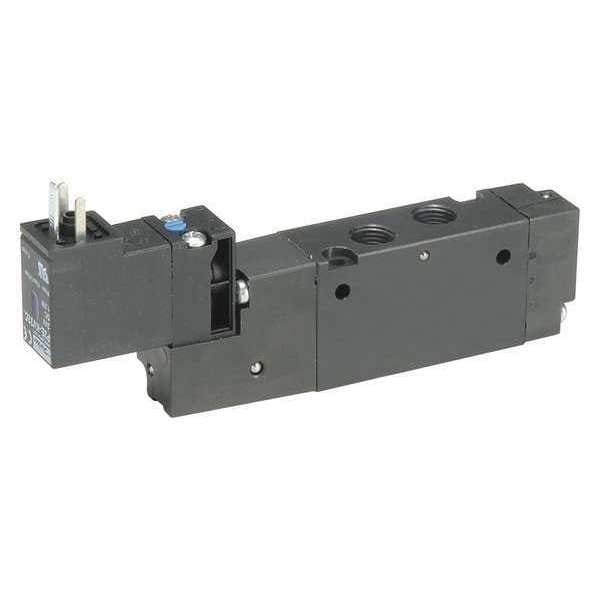

Solenoid Air Control Valve, 1/8 In, 120VAC
Mfr # B3G0BB553C
Zoro # G1333866
original price:
$155.71
28% off
new price: $110.99
/ea
Free Shipping & Returns
$110.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Valve Ways and Positions 3-Way/2-Position
- Voltage 120V AC
- Valve Actuator / Return Solenoid / Spring
- Coefficient of Volume 0.75
- Pipe Size 1/8 in
Product Information
- Brand Parker
- MFR # B3G0BB553C
- Zoro # G1333866
- Country of Origin United States
- Category Solenoid Air Control Valves
Dimensions
Pipe Size | 1/8 in |
Overall Length | 4 in |
Overall Width | 1 in |
Pilot Port Size | 1/8 in NPT |
Overall Height | 1 1/2 in |
Details
Item | Solenoid Air Control Valve |
Valve Ways and Positions | 3-Way/2-Position |
Voltage | 120V AC |
Valve Actuator / Return | Solenoid / Spring |
Coefficient of Volume | 0.75 |
Max. CFM - Valves | 0.75 cfm |
Operational Pressure Range | 20 to 145 psi |
NEMA Classification | NEMA 4 |
Body Style | Body Ported |
Actuator/Return | Solenoid/Spring |
Air Valve Type | 3-Way, 2-Position |
Override | Non-Locking Flush |
Pressure Range | 20 to 145 psi |
Ambient Temp. Range | 5 Degrees to 120 Degrees F |
Standards | CE, CSA, cUS |
Electrical Connections | 15mm, 3-Pin Male DIN |
Normally Open / Normally Closed | Normally Closed |
Valve Vacuum Range | 0 to 28 in Hg |
Description
Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/8 in, Max. CFM - Valves 0.75 cfm, Operational Pressure Range 20 to 145 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Normally Closed, Body Style Body Ported, Pilot Port Size 1/8 in NPT, Coefficient of Volume 0.75, 15mm, 3-Pin Male DIN Electrical Connections, Ambient Temp. Range 5 Degrees to 120 Degrees F, Override Non-Locking Flush
