Shop All Solenoid Air Control Valves
Parker

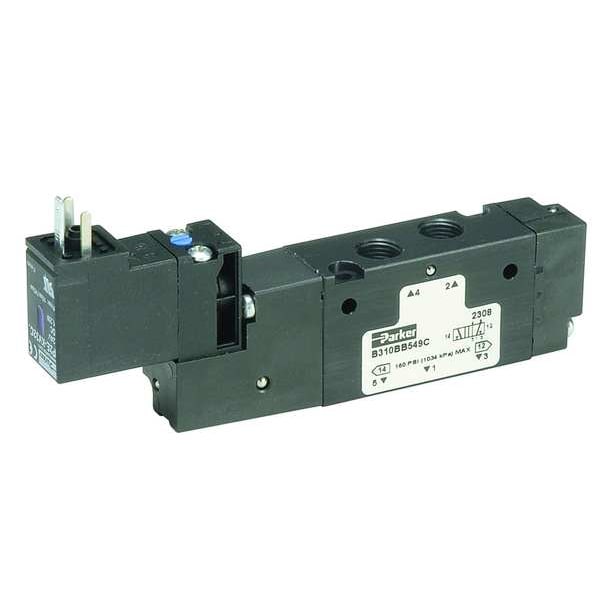

Solenoid Air Control Valve, 1/4 In, 24VDC
Mfr # B5G1BB549C
Zoro # G2774317
product price: $124.99
/ea
Free Shipping & Returns
$124.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Valve Ways and Positions 3-Way/2-Position
- Voltage 24V DC
- Valve Actuator / Return Solenoid / Spring Air Assist
- Coefficient of Volume 1.4
- Pipe Size 1/4 in
Product Information
- Brand Parker
- MFR # B5G1BB549C
- Zoro # G2774317
- Country of Origin United States
- Category Solenoid Air Control Valves
Dimensions
| Pipe Size | 1/4 in |
| Overall Length | 5 1/4 in |
| Overall Width | 1 1/2 in |
| Pilot Port Size | 1/4 in NPT |
| Overall Height | 2 1/2 in |
Details
| Item | Solenoid Air Control Valve |
| Valve Ways and Positions | 3-Way/2-Position |
| Voltage | 24V DC |
| Valve Actuator / Return | Solenoid / Spring Air Assist |
| Coefficient of Volume | 1.4 |
| Max. CFM - Valves | 1.4 cfm |
| Operational Pressure Range | 20 to 145 psi |
| NEMA Classification | NEMA 4 |
| Standards | CE, CSA, cUS |
| Pressure Range | 20 to 145 psi |
| Normally Open / Normally Closed | Normally Closed |
| Body Style | Body Ported |
| Actuator/Return | Solenoid/Spring |
| Ambient Temp. Range | 5 Degrees to 120 Degrees F |
| Air Valve Type | 3-Way, 2-Position |
| Override | Non-Locking Flush |
| Valve Vacuum Range | 0 to 28 in Hg |
| Electrical Connections | 15mm, 3-Pin Male DIN |
Description
Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring Air Assist, Pipe Size 1/4 in, Max. CFM - Valves 1.4 cfm, Operational Pressure Range 20 to 145 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Normally Closed, Body Style Body Ported, Pilot Port Size 1/4 in NPT, Coefficient of Volume 1.4, 15mm, 3-Pin Male DIN Electrical Connections, Ambient Temp. Range 5 Degrees to 120 Degrees F
