Shop All Brake Parts
Parker

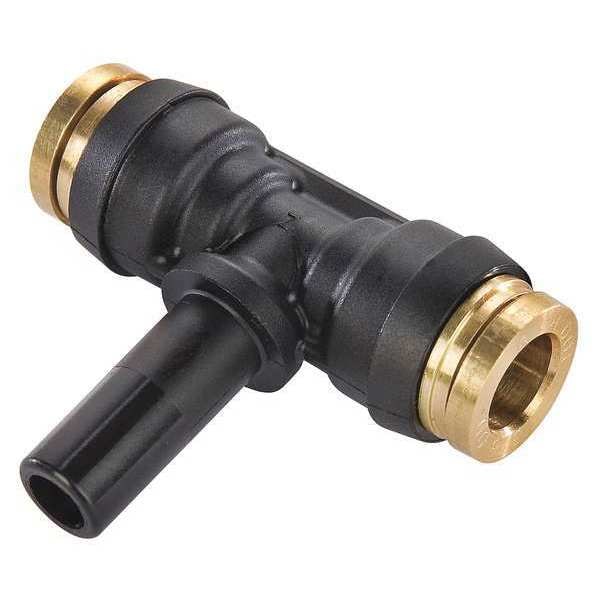

Male Branch Tee, 1/4 in. Thread, 2.02 in L
Mfr # 372PTCSP-6-4
Zoro # G5434567
original price:
$15.37
8% off
new price: $13.99
/ea
$13.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Sub-Category Tees
- Tube Size 3/8 in
- Material Nylon
- Standards DOT FMVSS 571.106, SAE J2494-3
- Application Air
Product Information
- Brand Parker
- MFR # 372PTCSP-6-4
- Zoro # G5434567
- Country of Origin Mexico
- Category Brake Parts
Dimensions
Tube Size | 3/8 in |
Fitting Side A Tube Outer Diameter | 3/8 in |
Fitting Side B Tube Outer Diameter | 1/4 in |
Fitting Side C Tube Outer Diameter | 3/8 in |
Overall Length | 2 1/32 in |
Details
Item | Male Branch Tee |
Sub-Category | Tees |
Material | Nylon |
Standards | DOT FMVSS 571.106, SAE J2494-3 |
Application | Air |
Color | Black |
Fitting Material | Composite |
Fitting Side A Connection Type | Push-to-Connect |
Resistance Properties | Compact-Resistant, Impact-Resistant |
Maximum Operating Pressure | 250 psi |
Release Type | Button |
Specific Fitting Shape | Adapter Tee |
Minimum Operating Temperature | -40 Degrees F |
Fitting Side B Connection Type | Tube Stem |
Compatible Tube Material | Nylon (J844 Type A and B), Stainless Steel |
Fitting Side C Connection Type | Push-to-Connect |
Maximum Operating Temperature | 200 Degrees F |
Includes Pre-Applied Thread Sealant | No |
System of Measurement | Imperial |
Description
Male Branch Tee, Application Air, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Tube Stem, Fitting Side C Connection Type Push-to-Connect, Includes Pre-Applied Thread Sealant No, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 1/4 in, Fitting Side C Tube Outer Diameter 3/8 in, Fitting Material Composite, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 1/32 in
Restrictions
