Shop All Manifolds
Parker

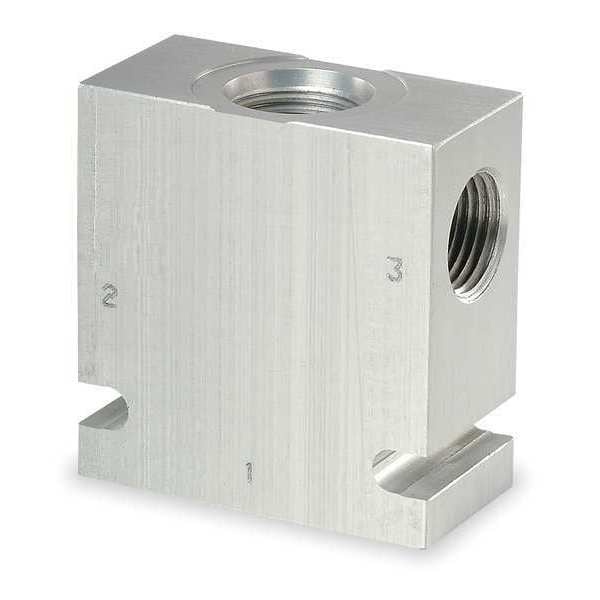

Base, Cartridge Valve
Mfr # B10-3-A8T
Zoro # G3321087
product price: $69.55
/ea
$69.55
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Length 2.5 in
- Overall Width 1.25 in
- Overall Height 2.63 in
- For Use With Threaded Cartridge Valves
- Height (In.) 2.63 in
Product Information
Dimensions
Overall Length | 2.5 in |
Overall Width | 1.25 in |
Overall Height | 2.63 in |
Height (In.) | 2.63 in |
Valve Cavity Size | C10-3 |
Length (In.) | 1.25 in |
Port Size - Hydraulic Valves | #8 SAE |
Width (In.) | 2.5 in |
Port Connection Size | 3/4"-16 |
Port Connection Dash Size | -8 |
Details
Item | Hydraulic Cartridge Valve Base |
For Use With | Threaded Cartridge Valves |
Material | Aluminum |
Max. Pressure - Hydraulic Valves | 3,000 psi |
(F)NPT Ports (In.) | SAE-8 |
Valve Base Item | Hydraulic Cartridge Valve Base |
Body Material - Hydraulic Valves | Aluminum |
Fits Valve Number | 4DMK4, 4DML1, 4DML2, 4DML3, 4UA85, 4UA88 |
SAE Straight Thread (In.) | 3/4-16 |
Body Material | Aluminum |
Number of Positions | Three Positions |
Port Connection Type | SAE 45 Degrees Flare |
Pressure - Maximum | 3,000 psi |
Port Connection Gender | Female |
Description
Hydraulic Cartridge Valve Base, Body Material Aluminum, Number of Positions Three Positions, Valve Cavity Size C10-3, Overall Length 2.5 in, Overall Width 1.25 in, Overall Height 2.63 in, Port Connection Size 3/4 In.-16, Compatible Grainger Part Number 4DMK4, 4DML1, 4DML2, 4DML3, 4UA85, 4UA88, Port Connection Dash Size -8, Pressure - Maximum 3,000 psi, Port Connection Type SAE 45 Degrees Flare, Port Connection Gender Female
