  11. 3/4" A-LOK 316 SS Bulkhead Union
Shop All Instrumentation Tube Fittings
Parker

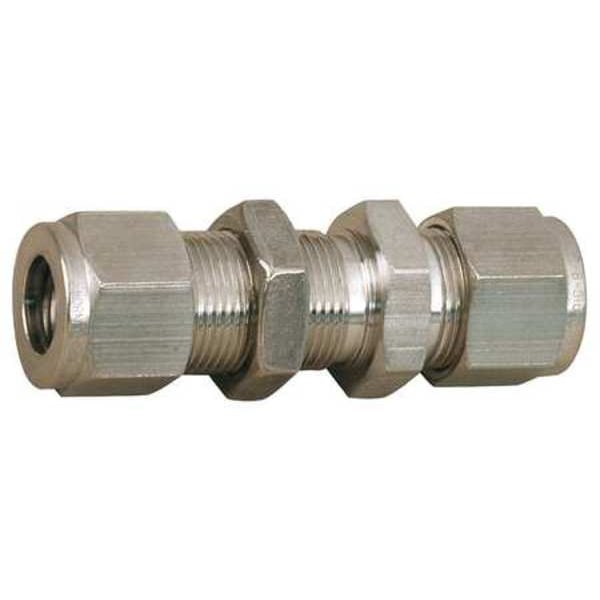

3/4" A-LOK 316 SS Bulkhead Union

product price: $104.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material 316 Stainless Steel
  • Pipe Fitting Connection Type A-LOK(R) x A-LOK(R)
  • Standards ASME SA-213, ASTM A213, ASTM A249, ASTM A269, MIL-T-8504, MIL-T-8506
  • Tube Size 3/4 in
  • Hex Size 1 3/16 in
See all product information

Product Information

Dimensions

Tube Size 3/4 in
Hex Size 1 3/16 in
Thread Size B 1-20
Fitting Side B Tube Outer Diameter 3/4 in
Overall Length 3 1/8 in
Fitting Side A Tube Outer Diameter 3/4 in
Thread Size A 1-20
Length 3.11"

Description

Bulkhead Union, Application Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/4 in, Fitting Side B Tube Outer Diameter 3/4 in, Material Grade 316, Maximum Operating Pressure 5,800 psi, Maximum Operating Temperature 649 Degrees C, Overall Length 3 1/8 in, Specific Fitting Shape Straight Bulkhead Union

Restrictions
