Parker

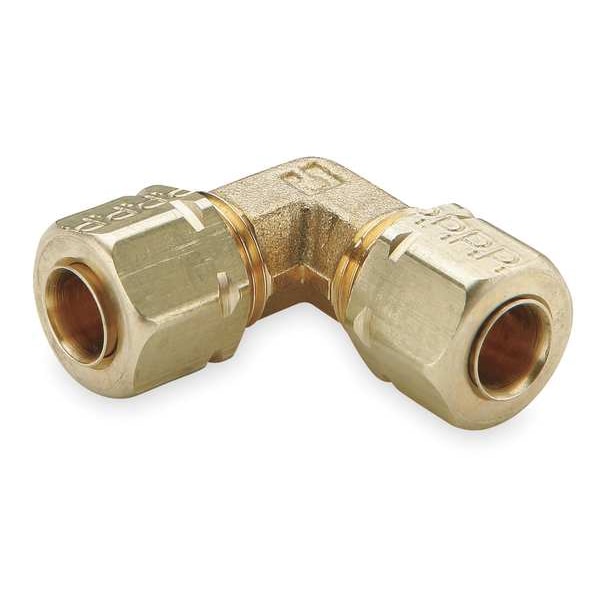

3/16" Compression Brass 90 Degree Elbow 10PK

product price: $60.45
/pk 10, $6.05/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Brass
  • Specific Fitting Shape 90 Degrees Elbow
  • Fitting Connection Type Compression
  • Tube Size 3/16 in
  • Pipe Fitting Connection Type Compression
See all product information

Product Information

Dimensions

Tube Size 3/16 in
Compression Thread Size 3/8-24
Fitting Side A Tube Outer Diameter 3/16 in
Overall Length 27/32 in
Fitting Side B Tube Outer Diameter 3/16 in
Thread Size B 3/8-24
Thread Size A 3/8-24
Thread Size 3/8-24
Length .84"
Outside Dia. .125"

Description

Elbow, 90 Degrees, Application Air, Inert Gases, Non-Combustible Gases, Potable Water, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/16 in, Fitting Side B Tube Outer Diameter 3/16 in, Maximum Operating Pressure 1,900 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 27/32 in, Specific Fitting Shape 90 Degrees Elbow, Thread Size A 3/8-24, Thread Size B 3/8-24
