Shop All Air Cylinders
Parker

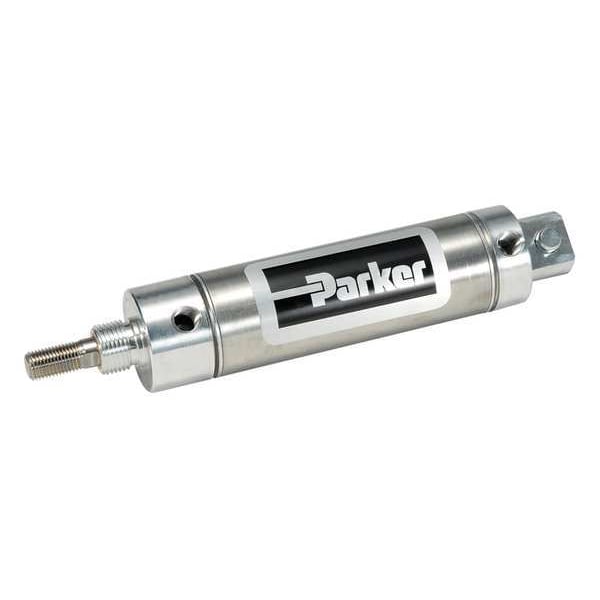

1-1/16" Bore Round Double Acting Air Cylinder 6" Stroke
Mfr # 1.06DPSR06.00
Zoro # G6146077
product price: $57.85
/ea
$57.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cylinder Action Double Acting
- Bore Dia. 1 1/16 in
- Max. Pressure 250 psi
- Body Material Stainless Steel
- Rod Dia. 0.312 in
Product Information
- Brand Parker
- MFR # 1.06DPSR06.00
- Zoro # G6146077
- Country of Origin United States
- Category Air Cylinders
Dimensions
| Bore Dia. | 1 1/16 in |
| Rod Dia. | 0.312 in |
| Overall Length | 10.6 in |
| Rod Thread Length | 1/2 in |
| Pivot Hole Dia. | 0.251 in |
| Port Size | 1/8 in FNPT |
| Dimension N1 | 5/8"-18 |
| Dimension A | 1/2 in |
| Dimension Cc | 0.312 in |
| Rod Thread Size | 5/16"-24 |
| Dimension E | 0.38 in |
| Dimension B | 0.624 in |
| Dimension L | 0.34 in |
| Dimension D | 0.25 in |
| Dimension Kk | 5/16"-24 UNF |
| Dimension Cd | 0.25 in |
| Dimension Cb | 0.38 in |
| Air Cylinder Bore Dia. | 1 1/16 in |
| Rod Diameter | 5/16 in |
| Nose Mount Thread Size | 5/8"-18 |
| Body Diameter | 1 1/8 in |
| Bore Diameter | 1 1/16 in |
| Inlet Size | 1/8 in |
| Stroke Length | 6 in |
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Nose, Pivot with Pin, Bore Diameter 1 1/16 in, Cushion Type None, Stroke Length 6 in, Inlet Size 1/8 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Mounting Location Front, Body Material Grade 304, Body Diameter 1 1/8 in, Inlet Gender Female
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
