Panduit

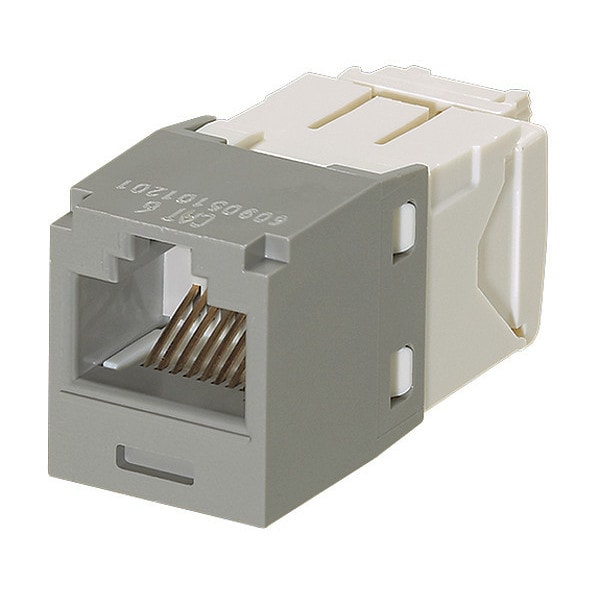

Module, Cat6, Utp, 8p8w, Universal, Ig, Tg

product price: $178.99
/pk 10, $17.90/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color International Gray
  • Connector Type Jack Module - Standard
  • Maximum Storage Temperature (°C) 75
  • Body Material Polycarbonate
  • Overall Height (In.) 0.71
See all product information

Product Information

Dimensions

Overall Height (In.) 0.71
Overall Width (In.) 0.62
Overall Length (In.) 1.5
Overall Depth (In.) 1.5

Details

Color International Gray
Connector Type Jack Module - Standard
Maximum Storage Temperature (°C) 75
Body Material Polycarbonate
Shield Type Unshielded (UTP)
Termination Style TG Style
Maximum Operating Temperature (°C) 75
Module Type Mini-Com®
Product Type Jack Module
Performance Level Category 6
Resistance Properties Heat-Resistant
Contact Material Plated Phosphor Bronze
Wiring Scheme T568A/T568B
Standards Met Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
Minimum Storage Temperature (°C) -40
Minimum Operating Temperature (°C) -10

Description

Module, Cat6, Utp, 8p8w, Universal, Ig, Tg
