  9. Jack, Mini Com, Cat 6, Gray
Shop All Voice & Data Jacks
Panduit

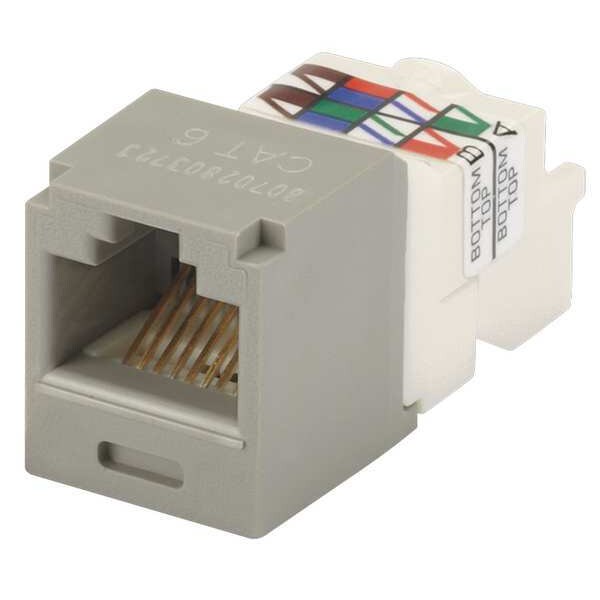

Jack, Mini Com, Cat 6, Gray

original price: $11.85
12% off
new price: $10.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series Mini Com
  • Cable Type CAT6
  • Material Plastic
  • Color Gray
  • For Use With Mini-Com Faceplate and Panels
See all product information

Product Information

Dimensions

Width 0.624 in
Height 0.712 in
Depth 1.432 in
Overall Width (In.) 0.63
Overall Depth (In.) 1.43
Overall Height (In.) 0.71
Overall Length (In.) 1.43
Overall Length (mm) 36.3
Overall Depth (mm) 36.3
Overall Width (mm) 16
Overall Height (mm) 18
Overall Width 5/8 in
Overall Height 3/4 in
Overall Depth 1 3/8 in

Details

Item Modular Jack
Series Mini Com
Cable Type CAT6
Material Plastic
Color Gray
For Use With Mini-Com Faceplate and Panels
Number of Ports 1
Termination Type Tool-Less
Connector Type Jack Module - Standard
Body Material ABS
Performance Level Category 6
Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Minimum Storage Temperature (°C) -40
Shield Type Unshielded (UTP)
Minimum Operating Temperature (°C) -10
Product Type Jack Module
Termination Style TP Style
Maximum Storage Temperature (°C) 70
Maximum Operating Temperature (°C) 65
Resistance Properties Flame/Fire Resistant
Contact Material Plated Phosphor Bronze
Module Type Mini-Com®
Wiring Scheme T568A/T568B
Contact Plating Gold
Connector Details 1 x RJ-45 Network Female
Product Name Mini-Com TX6 Plus Modular Insert
Certifications & Standards TIA/EIA-568-B.2-1
Product Color Gray
Environmentally Friendly Yes
Additional Information Gold-Plated Contacts
Compatibility <b>Panduit Mini-Com:</b></li> </ul>Modular Patch Panels</li><li>Faceplates</li><li>Surface Mount Boxes</li></ul>
Product Line Mini-Com
Sub Brand Pan-Net®
Minimum Operating Temperature (°F) 14
Maximum Operating Temperature (°F) 149
Maximum Storage Temperature (°F) 158
Minimum Storage Temperature (°F) -40
Compatible Connector Type RJ45
Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
RCA Insulator Color Gray
Compatible Cable Performance Category 6

Description

Modular Jack, Termination Type Tool-Less, Compatible Cable Performance Category 6, Compatible Connector Type RJ45, Color Gray, RCA Insulator Color Gray, Number of Ports 1, Overall Depth 1 3/8 in, Overall Height 3/4 in, Overall Width 5/8 in, Resistance Properties Flame/Fire Resistant, Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
