Shop All Wire Terminals
Panduit

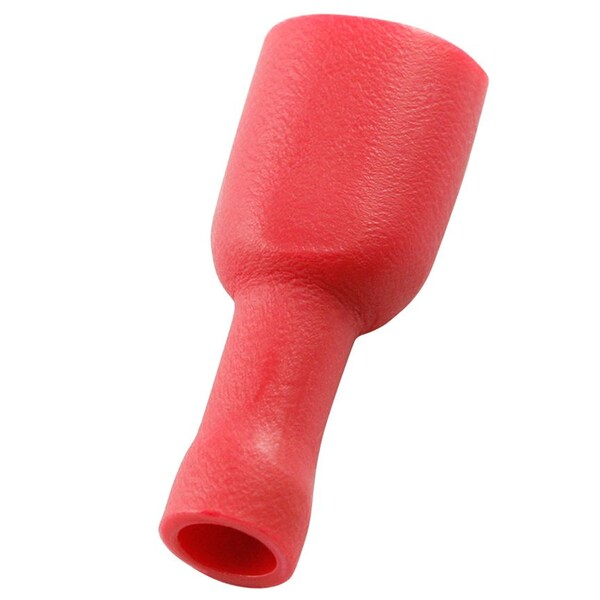

Female Disconnect, Vyl, Full Insul, PK25
Mfr # EDV18-250FIB-Q
Zoro # G0427583
product price: $5.49
/pk 25, $0.22/ea
Sold in multiples of 2 for $10.98
$10.98
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Range 22 to 16 AWG
- Insulation Type Vinyl
- Insulation Color Red
- Terminal Type Female Disconnect
- Seam Butted
Product Information
- Brand Panduit
- MFR # EDV18-250FIB-Q
- Zoro # G0427583
- UPC # 61305634184
- Country of Origin Taiwan, Province of China
- Category Wire Terminals
Dimensions
Overall Length | 0.87 in |
Width | 0.26 in |
Details
Wire Range | 22 to 16 AWG |
Insulation Type | Vinyl |
Insulation Color | Red |
Item | Female Disconnect,Vyl,Full Insul,PK25 |
Terminal Type | Female Disconnect |
Seam | Butted |
Standards | cULus, E78522 |
Max. Voltage | 300V |
Connection Material | Brass |
Max. Temp. | 167 Degrees F |
Finish | Tin-Plated |
Insulation Dia | 0.15 in |
Max Operating Temperature | 75 degrees celsius |
Barrel Type | Butted Seam |
Product Class | Wire Termination |
Color Coding | Red |
Description
Female Disconnect,Vyl,Full Insul,PK25, Package Quantity 25
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
