Shop All Indexable End Mills
Osg

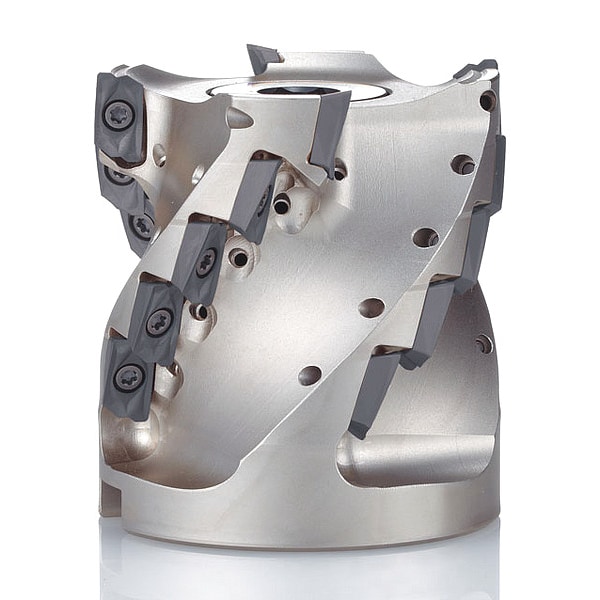

Indexable Square Shoulder End Mill
Mfr # 7802850
Zoro # G8298424
product price: $1,279.99
/ea
Free Shipping & Returns
$1,279.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series CV40
- Overall Length 45.00mm
- Depth of Cut 50.50mm
- Features Excellent Chip Evacuation, More Economical and Simplified Insert Management, Variable Axial Rake Angle
- Shank Dia. 31.75mm
Product Information
- Brand Osg
- MFR # 7802850
- Zoro # G8298424
- Country of Origin Japan
- Category Indexable End Mills
Dimensions
| Overall Length | 45.00mm |
| Depth of Cut | 50.50mm |
| Shank Dia. | 31.75mm |
| Connection Size | CV40 |
| Insert Size | 15.00 x 9.30 mm |
| Max. Cutting Dia. | 50 mm |
| Insert Cutting Edge Length | 50.50mm |
Details
| Item | Indexable Square Shoulder End Mill |
| Series | CV40 |
| Features | Excellent Chip Evacuation, More Economical and Simplified Insert Management, Variable Axial Rake Angle |
| Shank Type - Machining | Straight |
| Cutting Direction | Right Hand |
| Coolant Fed | Coolant Through |
| Standards | ANSI B5.50 |
| Number of Inserts | 12 |
| ANSI Code | PSEL15R050M22-3-50 |
| Cutting Application | Facing, Side Milling, Slotting |
| Insert Style | ZDKT |
| Compatible Hardware | Clamping Screw, Wrench |
| Insert Holding Type | Clamping Screw |
| Insert Shape | Diamond |
| Toolholder Style | PSEL |
| Side Cutting Edge Angle | 90 Degrees |
Description
Indexable Square Shoulder End Mill, Max. Cutting Dia. 50 mm, Shank Dia. 31.75mm, Straight, Overall Length 45.00mm, ANSI Code PSEL15R050M22-3-50, Compatible Hardware Clamping Screw, Wrench, Connection Size CV40, Coolant Fed Coolant Through
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
