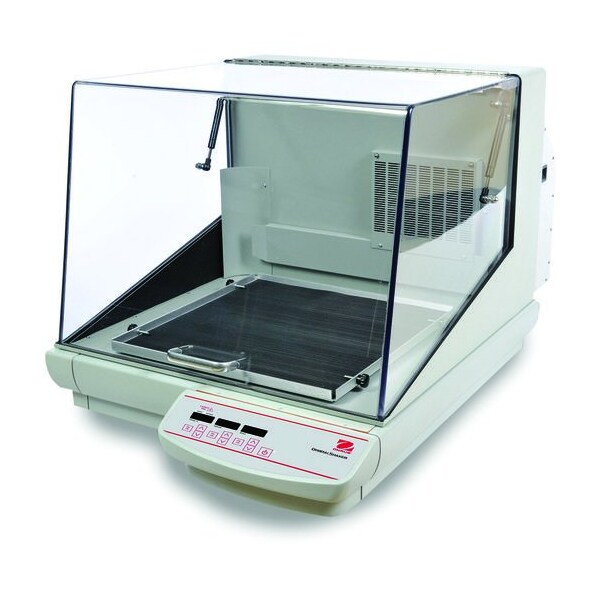

Incubating Heavy Duty Orbital Shaker, ISHD23CDG

Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity.For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides consistent shaking motion throughout the entire speed range. The chambers for the ISHD23HDG and ISHD23CDG units are large enough to hold 2 x 6 L Erlenmeyer flasks with optional clamps and platform.
MotionOrbital, 25 mm Capacity 50 lb (22.7kg)@ 125rpm, 10 lb (4.53kg)@ 500 rpm Temperature Range +15°C below Ambient €“ 65°C Speed Range15 rpm €“ 500 rpm Tray Size (LxW)18 in x 18 in (457 mm x 457 mm) ControlDigital CalibrationTemperature calibrationCommunicationRS232 Dimensions 32.1 in x 23.5 in x 26.6 in (815 mm x 596 mm x 675 mm) (LxHxW) Drive SystemTriple Eccentric; Brushless DC Motor Inner Dimensions 20.6 in x 17 in x 24.8 in (523 mm x 432 mm x 629 mm) (LxHxW)Net Weight 290.41 lb (131.7 kg) Power120V, 5A, 50/60Hz Power Consumption 800 W Safety CertificationTUV Speed AccuracyAbove 100rpm +/- 1%, Below 100rpm /- 1 rpm Timer1 second €“ 160 hours Tray ConstructionAluminumUniformity± 0.5°C at 37°C Working Environment59°F €“ 90°F, 80%RH, non-condensing (15°C €“ 32°C, 80%RH, non-condensing)Shipping Weight: 300 lbs
Research or further manufacturing use only, not for food or drug use.
