  9. LED Emergency Backlit Flat Panel - 2 ft. x 2 ft. - Watt/CCT Select - 100-277V - Color/PowerQuick
Shop All LED Commercial Lights
Nuvo

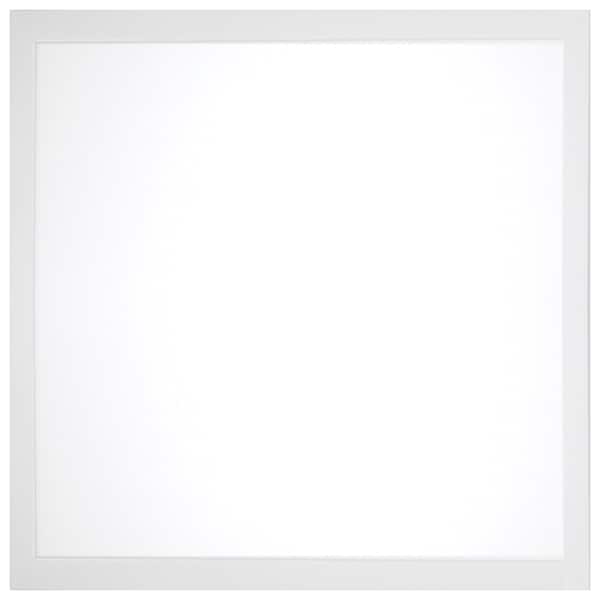

LED Emergency Backlit Flat Panel - 2 ft. x 2 ft. - Watt/CCT Select - 100-277V - Color/PowerQuick

product price: $206.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 100-277
  • Lamp Type - Fixtures Integrated LED
  • Watts 20/30/40W
  • Color Temperature 3500/4000/5000
  • Lumens 2200-4600
See all product information

Product Information

Dimensions

Width 23.75 in
Length 23.75 in
Height 3.06 in

Details

Voltage 100-277
Lamp Type - Fixtures Integrated LED
Watts 20/30/40W
Color Temperature 3500/4000/5000
Lumens 2200-4600
Rated Life 50000 hrs
Dimmable 100 to 20 percent
Temp. Range -17C (+1.4F) to +45C (+113F)
Standards cETLus ; RoHS ; FCC ; DLC ; IP20
Includes Mounting hardware
Housing Material Aluminum / Steel
Features Damp Location, Driver Specs - VDC38-48V; 430/620/810mA
Housing Finish White
CRI 80+
Beam Angle 120 degrees
Wattage / Lumen Selectable Yes
Incandescent Equivalent 150-175
Lens Finish Frost
Lens Material Poly methyl methacrylate (PMMA)
Application Indoor Lighting

Description

SATCO NUVO's LED Backlit 2X2 Flat Panel 65-575R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options, customers can choose from nine possible power and color configurations at installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. A flicker-free driver reduces strobing, generating comfortable light suitable for long-term task usage. This model features an emergency battery backup driver that provides 90 minutes of light with 8 watts of power and 1000 lumens making you feel safe and sound when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance-free life.
