Shop All Emergency Shut-Off Valves
Numatics

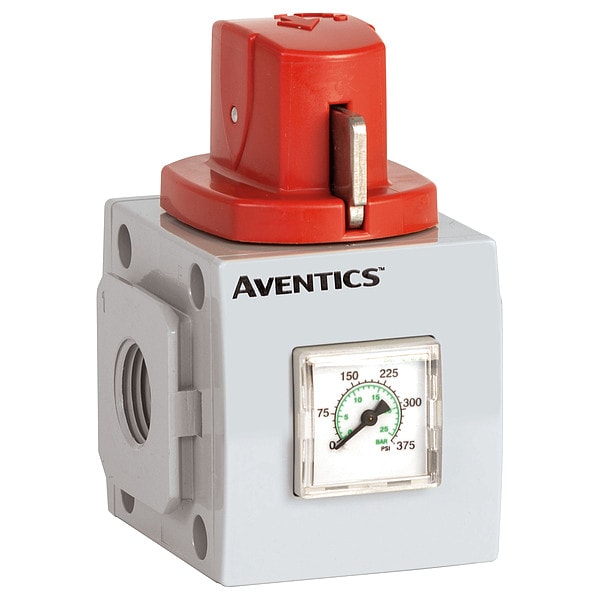

Shut Off Valve, 400 scfm, 0.97 lb
Mfr # 8652A3M04FA0000
Zoro # G409843373
product price: $89.15
/ea
Free Shipping & Returns
$89.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Body Material Aluminum
- Maximum Operating Temperature 122 Degrees F
- Minimum Flow Rate 8.1 scfm
- Weight 0.97 lb
- Modular Connection Modular Connection
Product Information
- Brand Numatics
- MFR # 8652A3M04FA0000
- Zoro # G409843373
- Country of Origin United States
- Category Emergency Shut-Off Valves
Dimensions
| Overall Height | 5 1/4 in |
| Air Outlet Size | 1/2 in |
| Overall Depth | 2 3/4 in |
| Overall Width | 2 5/8 in |
| Air Inlet Size | 1/2 in |
Details
| Item | Shut Off Valve |
| Body Material | Aluminum |
| Maximum Operating Temperature | 122 Degrees F |
| Minimum Flow Rate | 8.1 scfm |
| Weight | 0.97 lb |
| Modular Connection | Modular Connection |
| Air Inlet Gender | Female |
| Maximum Operating Pressure | 232 psig |
| Air Outlet Gender | Female |
| Air Outlet Type | NPT |
| Standards | ISO 228/1-G |
| Air Inlet Type | NPT |
| Seal Material | NBR/FKM |
| Maximum Flow Rate | 400 scfm |
| Series | 652 |
Description
Shut Off Valve, Air Inlet Size 1/2 in, Air Inlet Type NPT, Air Outlet Size 1/2 in, Air Outlet Type NPT, Maximum Operating Pressure 232 psig, Maximum Operating Temperature 122 Degrees F, Series 652, Air Inlet Gender Female, Air Outlet Gender Female, Body Material Aluminum, Maximum Flow Rate 400 scfm, Minimum Flow Rate 8.1 scfm, Modular Connection Modular Connection, Overall Depth 2 3/4 in, Overall Height 5 1/4 in, Overall Width 2 5/8 in, Seal Material NBR/FKM, Standards ISO 228/1-G
