Numatics

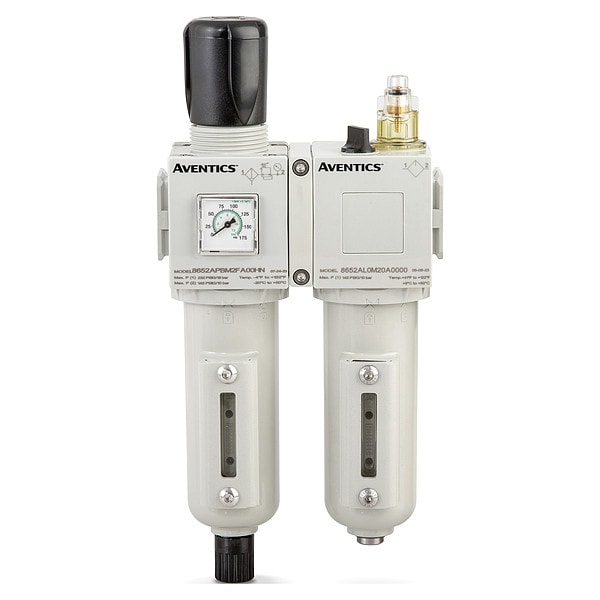

Filter Regulator Assembly, Cap. 90 mL

product price: $277.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes - ASSEMBLED, Lubricator - 8652AL0M20A0000, Particulate Filter-Regulator - 8652APBM2FA00HN
  • Overall Height 10 11/16 in
  • Drain Type Manual - Semi-automatic Drain
  • Filter Rating 5 micron
  • Overall Width 5 3/16 in
See all product information

Product Information

Dimensions

Overall Height 10 11/16 in
Overall Width 5 3/16 in
Overall Depth 2 7/8 in
Air Inlet Size 1/4 in
Pressure Gauge Port Size 1/4 in
Air Outlet Size 1/4 in

Description

Filter Regulator Assembly, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 2,780 lpm, Maximum Operating Pressure 10 bar, Filter Rating 5 micron, Filter Bowl Material Aluminum, Filter Bowl Capacity 60 mL, Lubricator Bowl Capacity 90 mL, Drain Type Manual - Semi-automatic Drain, Overall Width 5 3/16 in, Series 652, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Plastic, Air Flow Direction Left to Right, Air Inlet Gender Male, Air Outlet Gender Male
