Monarch

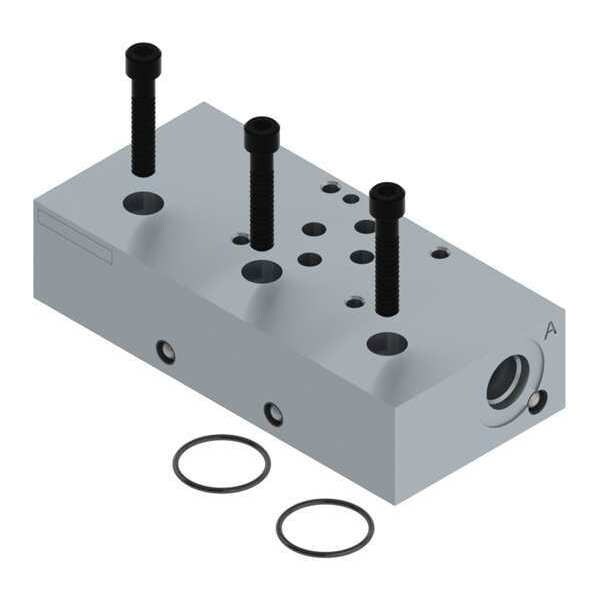

Valve Manifold, 1 Station, 3000 psi
Mfr # 500205524926
Zoro # G1153271
product price: $118.99
/ea
Free Shipping & Returns
$118.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Length 5 11/64 in
- Overall Width 2 29/64 in
- Overall Height 1 7/32 in
- Temp. Range -20 Degrees to 130 Degrees F
- Port Size - Hydraulic Valves #6 SAE
Product Information
Dimensions
| Overall Length | 5 11/64 in |
| Overall Width | 2 29/64 in |
| Overall Height | 1 7/32 in |
| Port Size - Hydraulic Valves | #6 SAE |
| Mounting Hole Size | 1/4-20 |
| NFPA Size | D03 |
| Port Connection Size | #6 |
Details
| Item | Valve Manifold |
| Temp. Range | -20 Degrees to 130 Degrees F |
| Body Material - Hydraulic Valves | Aluminum |
| Number of Stations | 1 |
| Max. Pressure - Hydraulic Valves | 3,000 psi |
| Includes | (2) O-Rings, D03 Manifold Mounting Pad, Mounting Hardware |
| For Use With | DO3 Directional Valves |
| Body Material | Aluminum |
| Series | D03 |
| Pressure - Maximum | 3,000 psi |
| Operating Temperature - Minimum | -20 Degrees F |
| Port Connection Gender | Female |
| Operating Temperature - Maximum | 130 Degrees F |
| Port Connection Type | SAE 45 Degrees Flare |
| For Media | Oil |
Description
Valve Manifold, Body Material Aluminum, Overall Height 1.219 in, Overall Length 5.172 in, NFPA Size D03, Overall Width 2.453 in, Pressure - Maximum 3,000 psi, Port Connection Gender Female, Port Connection Size #6, Port Connection Type SAE 45 Degrees Flare, Mounting Hole Size 1/4-20, Operating Temperature - Maximum 130 Degrees F, Operating Temperature - Minimum -20 Degrees F, Series D03, For Media Oil
