Shop All Hydraulic Power Units
Monarch

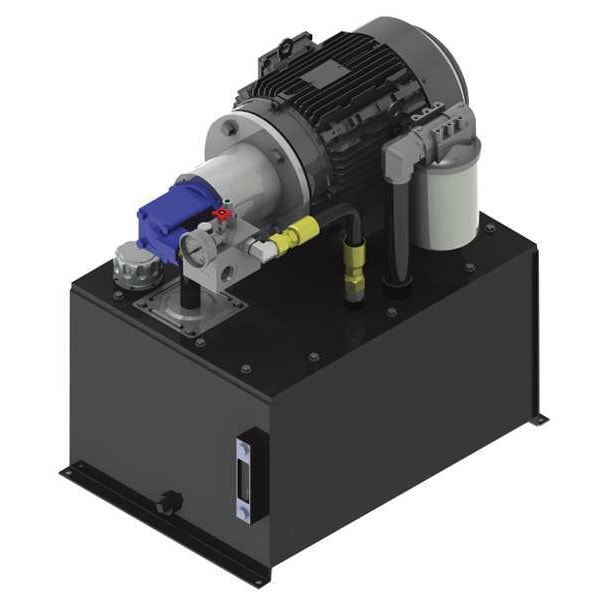

Power Unit, 20gal., 208-230/460VAC, 1500psi
Mfr # ZTJ000646
Zoro # G0091275
product price: $6,831.99
/ea
Free Shipping & Returns
$6,831.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Power Source - Power Units AC Power
- Voltage 208-230/460V AC
- Nominal Flow 7.5 gpm
- Max. Pressure 1,500 psi
- Reservoir Capacity 20 gal
Product Information
- Brand Monarch
- MFR # ZTJ000646
- Zoro # G0091275
- Country of Origin Canada
- Category Hydraulic Power Units
Dimensions
| Overall Height | 28 in |
| Overall Length | 27 in |
| Overall Width | 18 in |
Details
| Power Source - Power Units | AC Power |
| Voltage | 208-230/460V AC |
| Nominal Flow | 7.5 gpm |
| Max. Pressure | 1,500 psi |
| Reservoir Capacity | 20 gal |
| Pressure Port | 1-1/16"-12 (SAE 12) |
| Return Port | 1-5/16"-12 (SAE 16) |
| Built-In Features | Return Filter, Safety Relief Valve |
| RPM | 1,800 RPM |
| Hz | 60/50 |
| Phase | 3 |
| Number of Stages | 1 |
| Item | Hydraulic Power Unit |
| Mounting | Horizontal |
| HP | 7.5 hp |
| Full Load Amps | 19.7/17.8/8.9A |
| Mounting Orientation - Power Units | Horizontal |
| Frame Design - Hydraulic Power Units | Standard |
| Number of Phases | 3 |
| Hertz | 50/60 |
| Circuit Design | Single or Double Acting |
Description
Hydraulic Power Unit, Circuit Design Single or Double Acting, Power Source - Power Units AC Power, 7.5 hp HP, RPM 1,800 RPM, 208-230/460V AC, 50/60 Hertz, Number of Phases 3, Full Load Amps 19.7/17.8/8.9, Pump Stage 1, Max. Pressure 1,500 psi, Nominal Flow 7.5 gpm, Reservoir Capacity 20 gal, Overall Length 27 in, Overall Width 18 in, Overall Height 28 in
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
