Shop All Hydraulic Power Units
Monarch

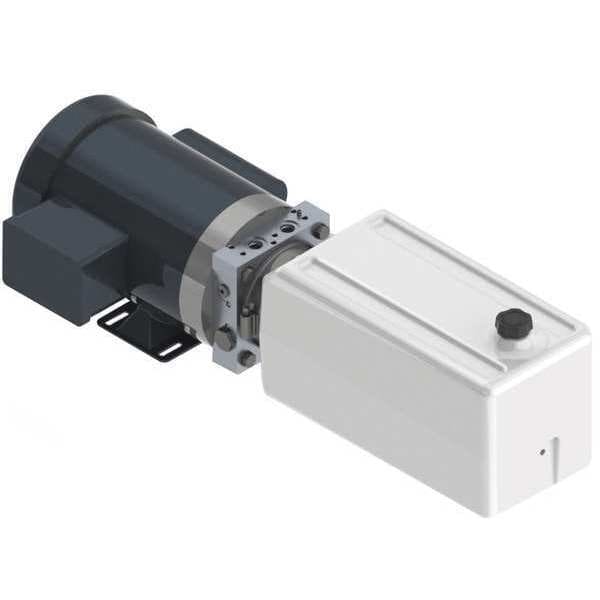

Power Unit, 1Stage, 115/208-230VAC, 1000psi
Mfr # M-4504-0161
Zoro # G9987607
product price: $840.99
/ea
Free Shipping & Returns
$840.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Power Source - Power Units AC Power
- Voltage 115/208-230V AC
- Nominal Flow 1.4 gpm
- Max. Pressure 1,000 psi
- Reservoir Capacity 1.6 gal
Product Information
- Brand Monarch
- MFR # M-4504-0161
- Zoro # G9987607
- Country of Origin United States
- Category Hydraulic Power Units
Dimensions
| Overall Width | 10 29/32 in |
| Overall Length | 27 3/32 in |
| Overall Height | 8 15/16 in |
Details
| Power Source - Power Units | AC Power |
| Voltage | 115/208-230V AC |
| Nominal Flow | 1.4 gpm |
| Max. Pressure | 1,000 psi |
| Reservoir Capacity | 1.6 gal |
| Number of Stages | 1 |
| Built-In Features | Load Holding Check Valve and Adjustable Relief Valve |
| Phase | 1 |
| Full Load Amps | 13.2/6.8-6.6A |
| RPM | 1,800 RPM |
| Pressure Port | 9/16"-18 (SAE 6) |
| Return Port | 9/16"-18 (SAE 6) |
| Mounting | Horizontal |
| HP | 1 hp |
| Hz | 60/50 |
| Item | Hydraulic Power Unit |
| Frame Design - Hydraulic Power Units | Compact |
| Mounting Orientation - Power Units | Horizontal |
| Number of Phases | 1 |
| Hertz | 50/60 |
| Circuit Design | Single or Double Acting |
Description
Hydraulic Power Unit, Circuit Design Single or Double Acting, Power Source - Power Units AC Power, 1 hp HP, RPM 1,800 RPM, 115/208-230V AC, 50/60 Hertz, Number of Phases 1, Full Load Amps 13.2/6.8-6.6, Pump Stage 1, Max. Pressure 1,000 psi, Nominal Flow 1.4 gpm, Reservoir Capacity 1.6 gal, Overall Length 27 3/32 in, Overall Width 10 29/32 in, Overall Height 8 15/16 in
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
