Shop All Hydraulic Power Units
Monarch

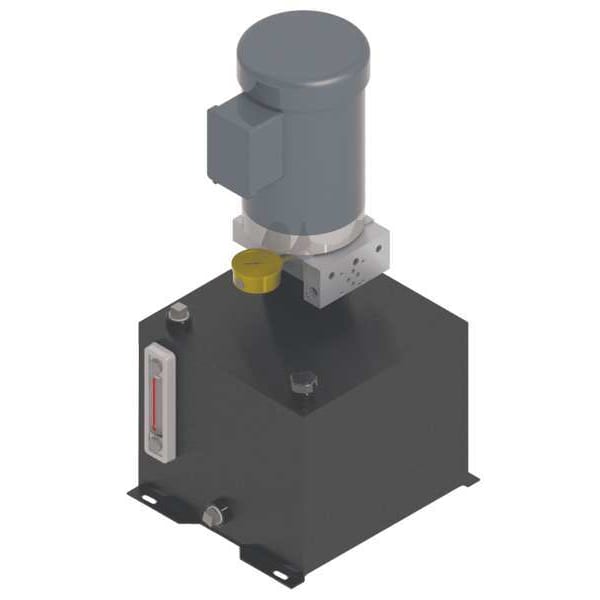

Power Unit, 1 Stage, 230/460VAC, 1500 psi

product price: $1,680.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Power Source - Power Units AC Power
  • Voltage 230/460V AC
  • Nominal Flow 1.9 gpm
  • Max. Pressure 1,500 psi
  • Reservoir Capacity 5 gal
See all product information

Product Information

Dimensions

Overall Length 14 in
Overall Height 25 31/32 in
Overall Width 12 1/4 in

Details

Power Source - Power Units AC Power
Voltage 230/460V AC
Nominal Flow 1.9 gpm
Max. Pressure 1,500 psi
Reservoir Capacity 5 gal
RPM 1,800 RPM
Return Port 9/16"-18 (SAE 6)
Phase 3
Pressure Port 9/16"-18 (SAE 6)
Item Hydraulic Power Unit
Number of Stages 1
Mounting Vertical
HP 2 hp
Manifold Block D03
Hz 60/50
Full Load Amps 6.0/3.0A
Circuit Design Single or Double Acting
Hertz 50/60
Number of Phases 3
Frame Design - Hydraulic Power Units Standard
Mounting Orientation - Power Units Vertical

Description

Hydraulic Power Unit, Circuit Design Single or Double Acting, Power Source - Power Units AC Power, 2 hp HP, RPM 1,800 RPM, 230/460V AC, 50/60 Hertz, Number of Phases 3, Full Load Amps 6.0/3.0, Pump Stage 1, Max. Pressure 1,500 psi, Nominal Flow 1.9 gpm, Reservoir Capacity 5 gal, Overall Length 14 in, Overall Width 12 1/4 in, Overall Height 25 31/32 in
