Tig Welder, Dynasty 280 DX Complete Package with CPS Series, 208 to 575V AC, 280 Max. Output Amps (Discontinued)

Mfr # 951877
Zoro # G2202971

Item requires special delivery charges. A $500.00 per item surcharge will be applied.

This Product is Discontinued

Shop for all TIG Welders

Key Features

Promotion Restriction Not eligible for promotion
Welder Industrial Class Medium
Welding Processes Pulsed TIG, Stick, TIG
Mild Steel - Material Thickness 0.004 in to 3/8 in
Aluminum - Material Thickness 0.012 in to 3/8 in

See all product information

Product Information

Brand Miller Electric
MFR # 951877
Zoro # G2202971
UPC #
715959578530
Country of Origin United States
Category TIG Welders

Dimensions

Overall Width	8 5/8 in
Overall Depth	22 1/2 in
Overall Height	13 5/8 in
Power Cord Length	8 ft

Details

Promotion Restriction	Not eligible for promotion
Welder Industrial Class	Medium
Item	TIG Welder
Welding Processes	Pulsed TIG, Stick, TIG
Mild Steel - Material Thickness	0.004 in to 3/8 in
Aluminum - Material Thickness	0.012 in to 3/8 in
Input Voltage	208 to 575V AC
Rated Output	250A @ 20V
Welder Max. Output Amps	280
Welder Min. Output Amps	1
Welder Duty Cycle	60 %
Series	Dynasty 280 DX
Welded Material	Aluminum, Steel
Power Source Weight	25 lb
Features	AC Frequency Control, AC/DC Power Source, Advanced Squareware Arc, Built-In Pulser, Extended Balance Control Range, HF Arc Starting, Inverter-Based, Memory Card Expandable, Portable, Pro-Set(TM), Programmable HF Start Parameters, W-280 Torch, Wireless Foot Control
Welder Input Hz	50/60
Application	Precision Fabrication, Heavy Fabrication, Pipe And Tube Fabrication, Aerospace, Aluminum Ship Repair, Anodized Aluminum Fabrication
Welder Input Phase	1 or 3

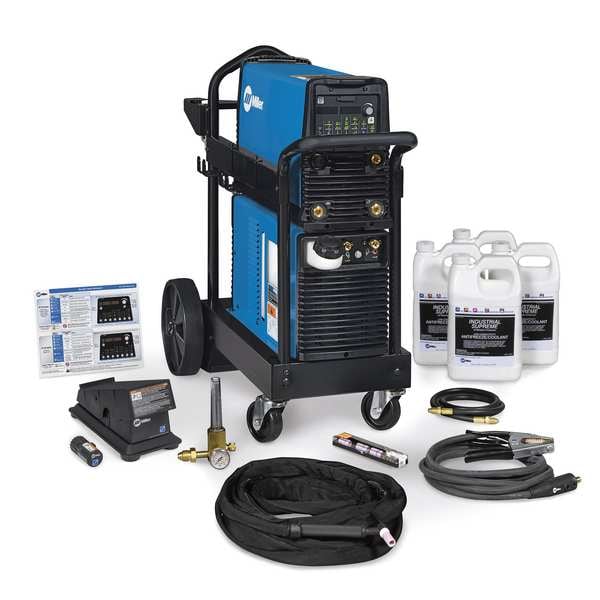

Includes	Coolant (4 one-gallon bottles of 043810), Coolmate(TM) 1.3, Dynasty(R) 280 DX, Quick Reference Guide, Small Runner Cart, Weldcraft(TM) W-280 torch kit and accessories (300990), Wireless remote foot control and receiver (300429)
Input (Amps)	33/30/17/15/12
Polarity	AC/DC
Input Frequency	50/60 Hz
Amperage Range	1 to 280 A
Remote Connection Type	14-Pin (Miller)
For Maximum Material Thickness	3/8 in (Aluminum), 3/8 in (Steel)
Max. Amperage Range (TIG)	150 A - 300 A
Welder Kit Type	TIG Package w/Wireless Foot Control & Water Cooler
Color	Blue
Input Voltage (Nominal)	208V, 240V, 400V, 480V, 575V
Rated Output at Duty Cycle (TIG)	250 A @ 60%
Kit Includes	Coolant, Running Gear, TIG Torch, Water Cooler, Wireless Foot Control
Plug Type	Bare Leads
For Material Type	Aluminum, Specialty Metals, Stainless Steel, Steel
Stick Welding Minimum Output Current	5 A
TIG Welding Maximum Output Current	280 A
Power Cord Included	Yes
TIG Welding Output @ Duty Cycle	250 A @ 20 V, 60%
Open Circuit Voltage	60V DC
For Minimum Material Thickness	0.004 in (Steel), 0.012 in (Aluminum)
Weight	52 lb
Welding Mode	CC
Max. Input Current	22 A @ 208V (Three-Phase), 34 A @ 208V (Single-Phase)
TIG Welding Minimum Output Current	1 A
Stick Welding Output @ Duty Cycle	180 A @ 27.2 V, 60%, 200 A @ 28 V, 60%
Remote Control	Wireless Foot Control Included
Stick Welding Maximum Output Current	280 A
Pulse Frequency	0.1 to 500 pulses/second
TIG Arc Start Feature	High Frequency Start, Lift Arc Start
Model	951469
brand-mfr model	MILLER ELECTRIC - 951877
Process	Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)

Description

TIG Welder, For Material Type Aluminum, Specialty Metals, Stainless Steel, Steel, For Maximum Material Thickness 3/8 in (Aluminum), 3/8 in (Steel), For Minimum Material Thickness 0.004 in (Steel), 0.012 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 22 A @ 208V (Three-Phase), 34 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Dynasty 280 DX, Stick Welding Maximum Output Current 280 A, Stick Welding Minimum Output Current 5 A
