This Product is Discontinued

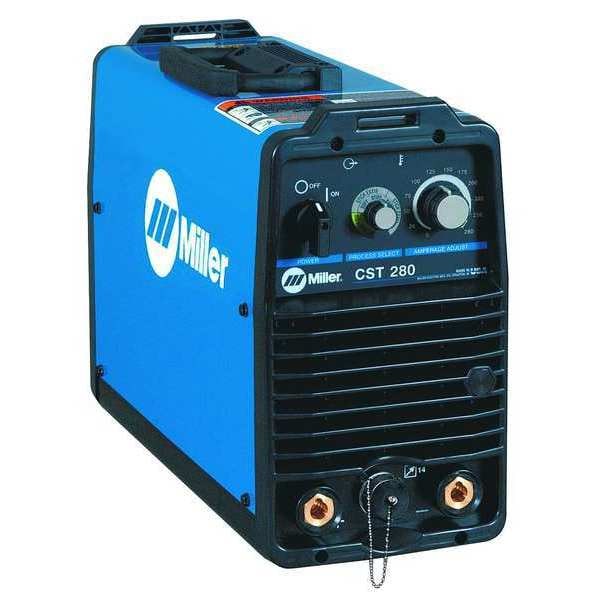

Arc Welders, 280A, 50/60 Hz (Discontinued)

Mfr # 907244
Zoro # G5517075

Free Shipping & Returns

This Product is Discontinued

Shop for all Welder Generator Accessories

Key Features

Promotion Restriction Not eligible for promotion
Welding Processes Stick Welding (SMAW), TIG Welding (GTAW)
Overall Height (In.) 13 1/2 in
Series CST 280
Application Industrial, maintenance and repair, petrochemical contruction, power plan construction, shipbuilding

See all product information

Product Information

Brand Miller Electric
MFR # 907244
Zoro # G5517075
UPC #
715959318563
Country of Origin United States
Category Welder Generator Accessories

Dimensions

Overall Height (In.)	13 1/2 in
Overall Width (In.)	7 1/2 in
Overall Depth (In.)	18 in
Overall Depth	18 in
Overall Height	13.5 in
Power Cord Length	6 ft
Overall Width	7.5 in

Details

Promotion Restriction	Not eligible for promotion
Item	Stick Welder
Welding Processes	Stick Welding (SMAW), TIG Welding (GTAW)
Series	CST 280
Application	Industrial, maintenance and repair, petrochemical contruction, power plan construction, shipbuilding
Standards	CSA
Phase	Single-/Three-Phase
Duty Cycle	Three Phase: 280A 31.2V @35% Single Phase: 200A 28V @50%
Includes	One set of male Dinse connectors, Power cord
Output Amps @20% Duty Cycle	275A: 3 phase 200A: 1 phase
Welding Amp Range High	Three Phase: 280 Single Phase: 200
Welding Amp Range Low	Three Phase: 5 Single Phase: 5
Input (Amps)	14.7, 17.8, 34.2, 35
Amps AC	280 A
OCV	77
Input Voltage	208V AC, 220/230/240V AC, 460/480V AC
Features	4 and 8 Pack Racks, Lift-Arc(TM), Optional Digital Meter, Remote Amperage Control, Simple To Operate, Simple Voltage Changeover, Superior Stick Arc Performance, Twist Lock Receptacles
Hz	50/60
Amps DC	280
Rated Output	Three Phase: 280A 31.2V @35% Single Phase: 200A 28V @50%
Polarity	DC
Output Range (Amps)	5 to 280
Output Amps @100% Duty Cycle	200A: 3 phase 150A: 1 phase
Welding Range (Amps DC)	Three Phase: 5-280 Single Phase: 5-200
Weight	41 lb
Stick Welding Maximum Output Current	280 A
Open Circuit Voltage	77 V DC
Remote Connection Type	14-Pin (Miller)
Stick Welding Output @ Duty Cycle	150 A @ 26 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 200 A @ 28 V, 50% (1-Phase), 280 A @ 31.2 V, 35% (3-Phase)
Effective Input Current	12 A @ 440V AC (Three-Phase), 12.7 A @ 460V AC (Three-Phase), 13.5 A @ 400V AC (Three-Phase), 17.5 A @ 460V AC (Three-Phase), 18 A @ 440V AC (Three-Phase), 19.8 A @ 400V AC (Three-Phase), 22.8 A @ 230V AC (Three-Phase), 23.5 A @ 208V AC (Three-Phase), 34 A @ 230V AC (Three-Phase), 36 A @ 208V AC (Three-Phase)
TIG Arc Start Feature	Lift Arc Start
TIG Welding Output @ Duty Cycle	150 A @ 26 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 200 A @ 28 V, 50% (1-Phase), 280 A @ 31.2 V, 35% (3-Phase)
TIG Welding Maximum Output Current	280 A
Welding Mode	CC
For Material Type	Stainless Steel, Steel
Color	Blue
Plug Type	Bare Leads
Cable Connection Type	Dinse-Style
Input Frequency	50/60 Hz
TIG Welding Minimum Output Current	5 A
Stick Welding Minimum Output Current	5 A
Model	907244

Description

Stick Welder, For Material Type Stainless Steel, Steel, Input Frequency 50/60 Hz, Input Voltage 208V AC, 220/230/240V AC, 460/480V AC, Phase Single-/Three-Phase, Polarity DC, Model 907244, Stick Welding Maximum Output Current 280 A, TIG Welding Maximum Output Current 280 A, Cable Connection Type Dinse-Style, Remote Connection Type 14-Pin (Miller)
