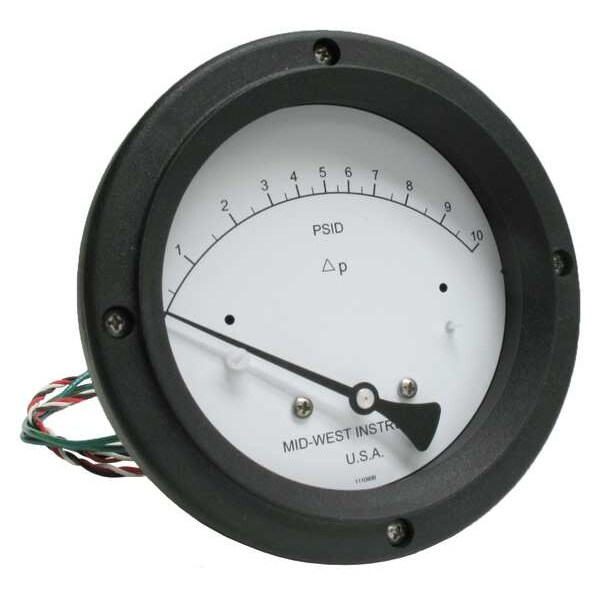

Differential Pressure Gauge and Switch

Mfr # 120AC-00-O-AA-10P
Zoro # G802016213

$281.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Gauge Accuracy +/-3-2-3%
Seal Material Buna-N
Series Series 120
Gauge Case Material Plastic
Standards CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed

See all product information

Product Information

Brand Midwest Instrument
MFR # 120AC-00-O-AA-10P
Zoro # G802016213
Country of Origin United States
Category Differential Pressure Gauges

Dimensions

Nominal Dial Size	4 1/2 in
Manufacturer Warranty Length	5 yr
Case Diameter	4 1/2 in
Bolt Circle Diameter	5.63 in
Process Connection Size	1/4 in
For Panel Cut-Out Size	5.3 in

Details

Gauge Accuracy	+/-3-2-3%
Seal Material	Buna-N
Series	Series 120
Gauge Case Material	Plastic
Standards	CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Pressure Range	0 to 110 psid
Relay Type	SPDT
Item	Differential Pressure Gauge & Switch
Accuracy	+/-3-2-3%
Burst Pressure	6,000 psi
Sensor Material	Buna-N
Over-Pressure Limit	Over-Range Protection to Maximum Pressure
Maximum Working Static Pressure	6,000 psi
IP/NEMA Rating	IP65, NEMA 4X
Removable Bezel	No
Hazardous Location Rating	Not Rated
Power Source	125V AC/DC
Number of Switches	1
O-Ring Material	Buna-N
Accuracy Grade	ASME B40.1 Grade B
Sensor Type	Piston
Panel Mount Characteristics	5.30 in Dia Panel Cutout and 0.19 in Holes 5.63 in Dia Bolt Circle
Case Shape	Round
Compatible Process Media	Pressure Drop
Movement Material	Stainless Steel
Process Temperature Range	-40 Degrees to 200 Degrees F
Dial Face Material	Aluminum
Case Construction	Hermetically Sealed
Ambient Operating Temperature Range	-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Process Connection Location	Back
Repeatability	1%
Non-Sparking	No
Process Connection Gender	Female
Application	Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Accuracy Details	+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Includes Vent Plug	No
Pressure Gauge Type	Differential Pressure Gauge with Switch
Panel-Mountable	Yes
Switch Contact Type	SPDT
Housing Material	Aluminum
Includes Mounting Hardware	No
Process Connection Type	NPT
Dial Color	White
Includes Calibration Certificate	No
Lens Material	Shatter Resistant Acrylic
Switch Electrical Requirements	0.25A @ 125V AC/DC
Adjustable Set Points	Yes
Blowout Safety Back	No

Description

Differential Pressure Gauge and Switch
