  11. Standard, Threading Tools, Stub ACME Threads, 0.360" Min Bore dia, Max. Bore Depth: 3/4"
Shop All Threading Inserts
Micro 100

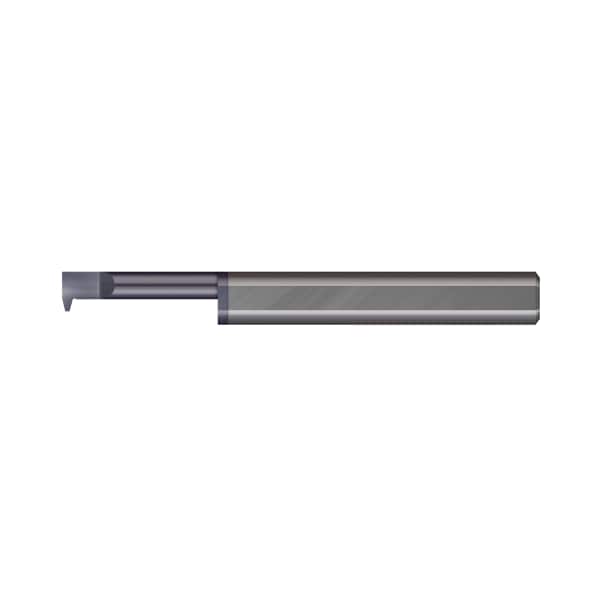

Standard, Threading Tools, Stub ACME Threads, 0.360" Min Bore dia, Max. Bore Depth: 3/4"

product price: $59.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cutting Direction Right Hand
  • Finish AlTiN
  • Overall Length 2-1/2"
  • Neck Dia. 0.2700"
  • Max. Bore Depth 3/4"
See all product information

Product Information

Dimensions

Overall Length 2-1/2"
Neck Dia. 0.2700"
Max. Bore Depth 3/4"
Min. Bore Dia. 0.3600"
Groove Width 0.1020"
Shank Dia. 3/8"
Split Length 0.210"
Flat Width 0.033"

Details

Cutting Direction Right Hand
Finish AlTiN
Offset 0.051"
Projection 0.0850"

Description

0.360" Min Bore DIA x 0.750" (3/4) Max Bore Depth 0.1020" Tooth Width 0.085" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide ACME Thread Right Hand, AlTiN Coated
