Shop All Indexable End Mills
Micro 100

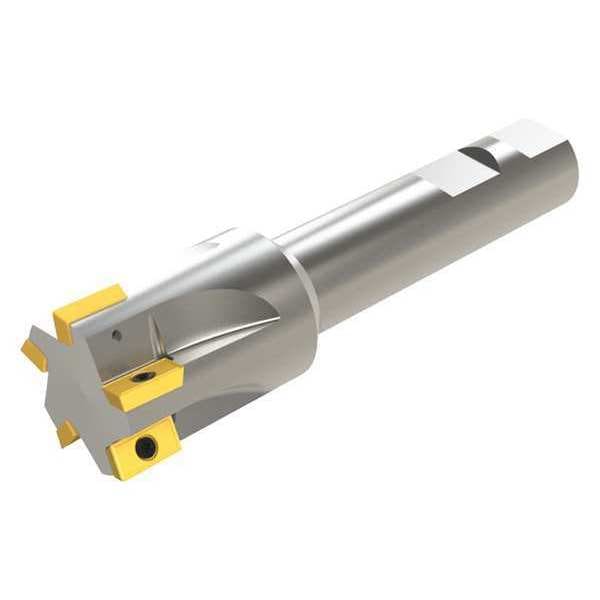

Indexable Square Shoulder End Mill, Solid Milling Series, 1" Max Cut Dia
Mfr # 31-3224
Zoro # G7930054
product price: $223.99
/ea
Free Shipping & Returns
$223.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series Solid Milling
- Cutting Dia. 1"
- Overall Length 4.4000 in
- Number of Inserts Required 4
- Cutting Angle 90 Degrees
Product Information
- Brand Micro 100
- MFR # 31-3224
- Zoro # G7930054
- UPC # 728709101100
- Country of Origin India
- Category Indexable End Mills
Dimensions
Cutting Dia. | 1" |
Overall Length | 4.4000 in |
Shank Dia. | 3/4 in |
Insert Size | 50-2100 |
Max. Cutting Dia. | 1 in |
Length of Cut | 2" |
Cutting Edge Length | 2" |
Details
Item | Indexable Square Shoulder End Mill |
Series | Solid Milling |
Number of Inserts Required | 4 |
Cutting Angle | 90 Degrees |
Insert Screw | 16-1020 |
Key | 16-1060 |
Includes | M2.5 x T-8 Torx Screw, Torx Key 16-1020 |
Cutting Application | Square Shoulder Milling |
Coolant Fed | Non-Coolant Through |
Insert Style | APKT |
Toolholder Style | BAAP |
Side Cutting Edge Angle | 90 Degrees |
Compatible Hardware | M2.5 x T-8 Torx Screw, Torx Key 16-1020 |
Finish | UN |
Number of Flutes | 4 |
Description
Indexable Square Shoulder End Mill, Max. Cutting Dia. 1 in, Shank Dia. 3/4 in, Overall Length 4.4000 in, Compatible Hardware M2.5 x T-8 Torx Screw, Torx Key 16-1020, Coolant Fed Non-Coolant Through
