Insulation Tester, Digital/Analog LCD

Mfr # MIT2500
Zoro # G9684276

$2,185.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Output Test Voltage 2500V DC
Insulation Resistance Range 0.1 megaohm to 1 gigohm
Resistance Range 0.1 to 200 gig ohms
Capacitance Range 0.1 nF to 10 uF
Display Digital/Analog LCD

See all product information

Product Information

Brand Megger
MFR # MIT2500
Zoro # G9684276
Country of Origin United Kingdom
Category Megohmmeters

Dimensions

Manufacturers Warranty Length	3 yr
Tool Height	2.3 in
Manufacturer Warranty Length	3 yr
Tool Length	9 in
Tool Width	4.3 in
Battery Size	AA

Details

Item	Insulation Tester
Output Test Voltage	2500V DC
Insulation Resistance Range	0.1 megaohm to 1 gigohm
Resistance Range	0.1 to 200 gig ohms
Capacitance Range	0.1 nF to 10 uF
Display	Digital/Analog LCD
Features	Guard Terminal for High Resistance Accuracy, Polarization Index (PI) and Dielectric Absorption Ratio (DAR), Rechargeable Options for Mains and Car Charging, Stabilized Insulation Test Voltage
Power Source	Battery
Diode Test	No
Interface	Bluetooth
Data Logging	Yes
Safety Rating	EN61557, IEC61010
Auto Ranging	Yes

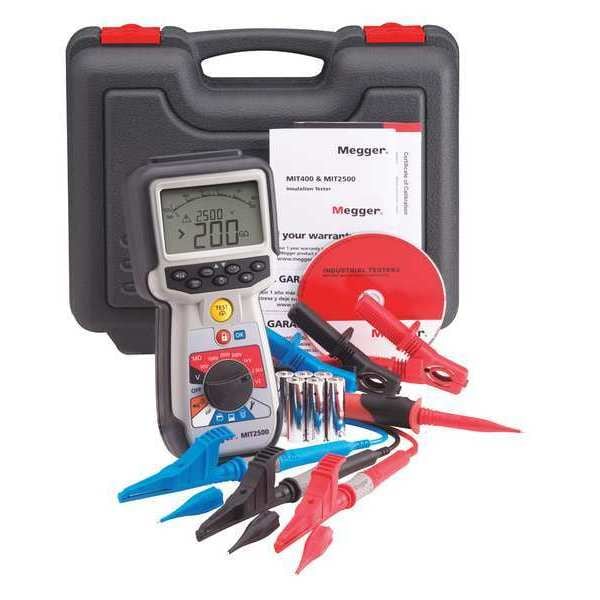

Includes	2.5 Kv Red/Black/Blue Silicone Test Leads with Clips, Carrying Case, Red/Black/Blue Silicone Test Leads with Prods and Clips
Auto Power Off	Yes
Calibration Certificate	Available Separately
Green Environmental Attribute	Product is Rechargeable
Parameters Measured	Continuity, Insulation Resistance
CAT Safety Rating	CAT IV 600V
Display Type	Digital
Communication Protocol	Bluetooth
Test Voltage	1,000V DC, 100V DC, 2,500V DC, 250V DC, 500V DC, 50V DC
Battery Chemistry	Alkaline, Nickel Metal Hydride
Operating Voltage	2,500V
PI/DAR Testing	Yes
Includes Batteries	Yes
Standards	EN 61557, IEC 61010
USB Data Download Included	No
Input Impedance	250 kiloohm
Includes Software	Yes
Timed Ramp Voltage Test	No
Number of Digits	2
Live Circuit Voltage	Upto 600V AC/DC
Pass/Fail Selection Limits	Yes
Maximum Operating Temperature	131 Degrees F
Minimum Capacitance Measured	0.1 nF
Display Screen Type	LCD
Minimum AC Voltage Measured	50 V
IP Rating	IP54
Testing Functions	Continuity, Insulation
Insulation Resistance Resolution	0.01 ohm to 1 megaohm
Remote Test Probe Included	Yes
Backlit Digital Display	Yes
Maximum AC Voltage Measured	2,500 V
Resistance Accuracy	+/-0.50%
Maximum Capacitance Measured	10 uF
Test Current	1 mA
Dustproof	Yes
Greater Than 30V Warning	No
Bluetooth Compatible	Yes
Maximum Insulation Resistance	1 gigohm
Capacitance Auto Discharge	Yes
Insulation Limit Alarm	Yes
Waterproof	No
Number of Batteries Required	6
Data Logger	Yes
Minimum Operating Temperature	14 Degrees F
Minimum Insulation Resistance	0.1 megaohm

Description

Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible Yes, CAT Safety Rating CAT IV 600V, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning No, Includes 2.5 Kv Red/Black/Blue Silicone Test Leads with Clips, Carrying Case, Red/Black/Blue Silicone Test Leads with Prods and Clips, Insulation Limit Alarm Yes, Maximum Insulation Resistance 1 gigohm, Minimum Insulation Resistance 0.1 megaohm
