Shop All Cooling Equipment Relays
Mcdonnell & Miller

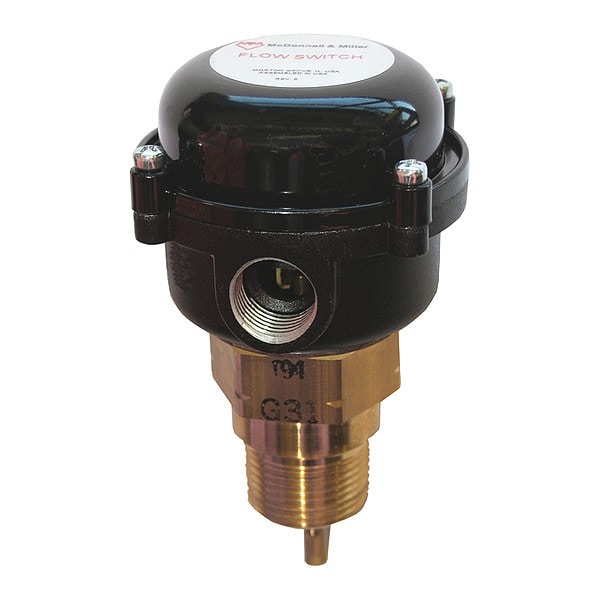

Flow Switch, Threads
Mfr # FS8-WJ
Zoro # G2083179
product price: $295.99
/ea
Free Shipping & Returns
$295.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Standards cULus Approved
- For Use With Mfr. Model Number 120602, 179156
- Fits Brand Mcdonnell and Miller
- Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)
- Connection Size 1 in
Product Information
- Brand Mcdonnell & Miller
- MFR # FS8-WJ
- Zoro # G2083179
- Country of Origin United States
- Category Cooling Equipment Relays
Dimensions
Connection Size | 1 in |
Overall Width | 3.3 in |
For Pipe Size | 1 in |
Overall Length | 3.3 in |
Overall Height | 8.4 in |
Details
Item | Flow Switch, Threads |
Standards | cULus Approved |
For Use With Mfr. Model Number | 120602, 179156 |
Fits Brand | Mcdonnell and Miller |
Contact Rating (AC) | 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load) |
Flow Rate - Minimum | 4.9 gpm |
Wetted Material | Brass, Stainless Steel |
Flow Rate - Maximum | 17.6 gpm |
Media Temperature - Maximum | 225 Degrees F |
Set Point Configuration | Adjustable |
Connection Type | NPT |
Switch Type | SPDT |
Switch Enclosure | NEMA 4X |
Ambient Temperature - Minimum | 32 Degrees F |
Media Temperature - Minimum | 32 Degrees F |
Flow Switch Type | Paddle |
Description
Flow Switch, Threads, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 17.6 gpm, Flow Rate - Minimum 4.9 gpm, Flow Switch Type Paddle, For Pipe Size 1 in, Media Temperature - Maximum 225 Degrees F, Media Temperature - Minimum 32 Degrees F, Overall Height 8.4 in, Overall Length 3.3 in, Overall Width 3.3 in
Restrictions
