Shop All Plate Casters
Mapp Caster

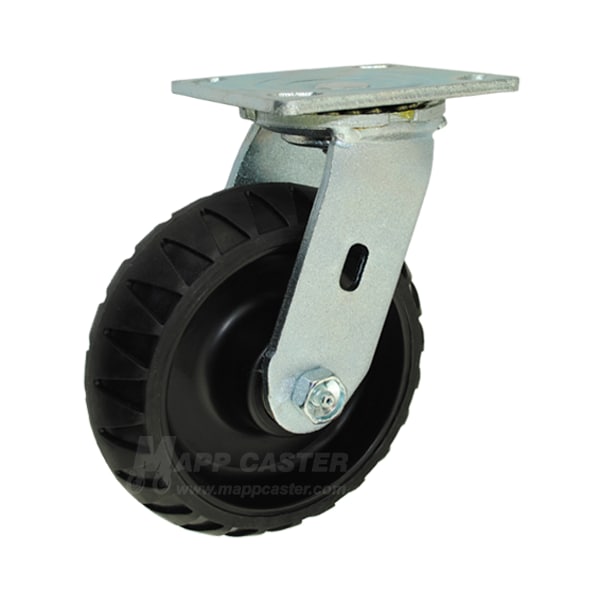

6"X2" Rugged Thermoplastic Rubber (TPR) Wheel Swvl Caster, 550 Lbs Cap
Mfr # 146RTPR620S
Zoro # G400593239
$47.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Caster Sub-Type Swivel
- Overall Height 7-1/2 in
- Swivel Radius 4-9/16 in
- Frame Finish Bright Zinc Plated
- Swivel Construction Double Ball Raceway - 5/8 in Kingpin
Product Information
- Brand Mapp Caster
- MFR # 146RTPR620S
- Zoro # G400593239
- Country of Origin China
- Category Plate Casters
Dimensions
Overall Height | 7-1/2 in |
Swivel Radius | 4-9/16 in |
Mounting Bolt Dia. | 3/8 in or Smaller |
Tread Width | 2 in |
Wheel Diameter | 6 in |
Details
Caster Sub-Type | Swivel |
Frame Finish | Bright Zinc Plated |
Swivel Construction | Double Ball Raceway - 5/8 in Kingpin |
Wheel Color | Black |
Caster Frame Material | Cold Rolled Steel |
Wheel Type | Thermoplastic Rubber |
Weight | 5.25 lb |
Wheel/Tread Hardness | Shore A 70 |
Mounting Plate Bolt Hole Pattern | 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in |
Temperature Range | -4°F to 158°F |
Mounting Plate | 4 in X 4-1/2 in |
Load Capacity | 550 lb |
Description
Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris.This casters crowned & grooved wheel helps go over all types of terrains. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, & smooth rolling wheels. We would notrecommendedthese wheels for applications that require sitting in one spot for long periods of time under heavy loads.
