Shop All Plate Casters
Mapp Caster

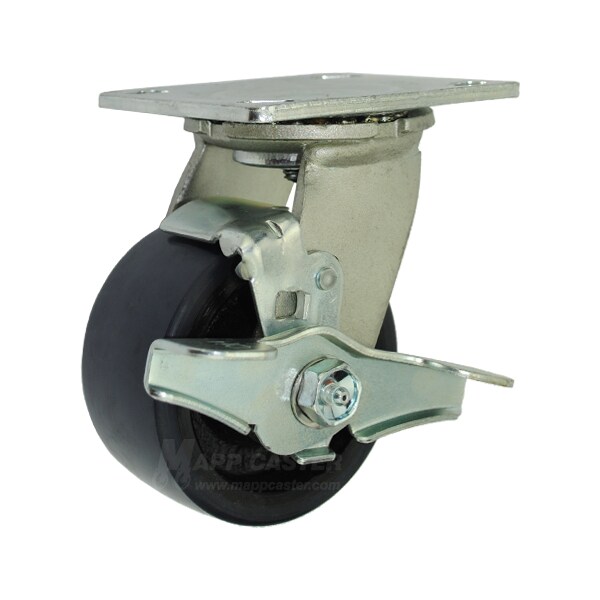

4"X2" Poly. on Iron Wheel Swivel Caster W/ Top Lock Brake, 800 Lbs Cap
Mfr # 146UIRB420SB
Zoro # G100593256
product price: $53.99
/ea
$53.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Caster Sub-Type Swivel with Brake
- Overall Height 5-5/8 in
- Swivel Radius 3-1/4 in
- Wheel Type Poly on Iron
- Swivel Construction Double Ball Raceway - 5/8 in Kingpin
Product Information
- Brand Mapp Caster
- MFR # 146UIRB420SB
- Zoro # G100593256
- Country of Origin China
- Category Plate Casters
Dimensions
| Overall Height | 5-5/8 in |
| Swivel Radius | 3-1/4 in |
| Mounting Bolt Dia. | 3/8 in or Smaller |
| Tread Width | 2 in |
| Wheel Diameter | 4 in |
Details
| Caster Sub-Type | Swivel with Brake |
| Wheel Type | Poly on Iron |
| Swivel Construction | Double Ball Raceway - 5/8 in Kingpin |
| Wheel Color | Dark Blue |
| Caster Frame Material | Cold Rolled Steel |
| Frame Finish | Bright Zinc Plated |
| Weight | 6.5 lb |
| Temperature Range | -40°F to 180°F |
| Mounting Plate Bolt Hole Pattern | 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in |
| Load Capacity | 800 lb |
| Mounting Plate | 4 in X 4-1/2 in |
| Wheel/Tread Hardness | Shore A 95 (+/-5) |
Description
Polyurethane on iron caster wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on iron wheels feature a crowned tread for easier rolling and turning, and also have a heavier core compared to the poly on iron wheels with red or green treads. These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in water for most of their use.
