  13. Lifting Magnet, 1000 lb Cap, 9-1/2 In OAL
Shop All Below the Hook Lifting Magnets
Mag-Mate

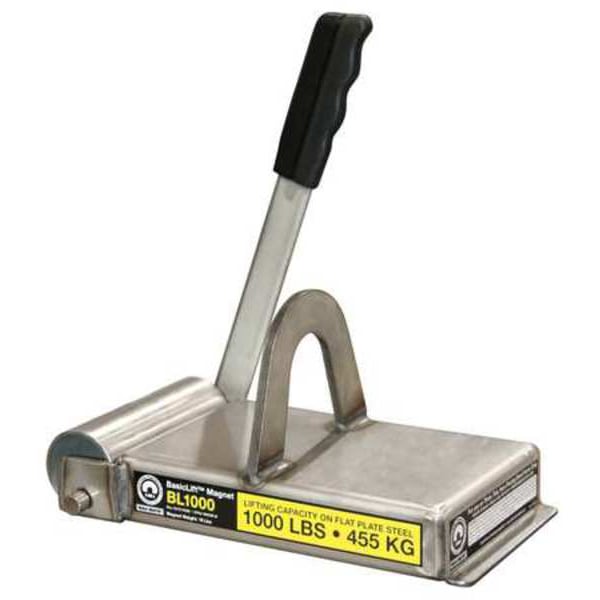

Lifting Magnet, 1000 lb Cap, 9-1/2 In OAL

product price: $564.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Rated Flat Capacity 1,000 lb
  • Overall Height 5 in
  • Magnet Activation Full Width Roller Cam
  • Overall Length 11 in
  • Magnet Length 6 1/2 in
See all product information

Product Information

Dimensions

Overall Height 5 in
Overall Length 11 in
Magnet Length 6 1/2 in
Magnet Width 4 1/2 in
Overall Width 5 5/8 in
Magnet Height 1 5/8 in
Bail Opening Width 2 3/4 in
Handle Length 11 3/8 in
Bail Opening Height 2 3/4 in
Bail Inside Width 2 3/4 in
Bail Inside Length 2 3/4 in

Description

Lifting Magnet, Maximum Flat Load Capacity 1,000 lb, Maximum Round Load Capacity Not Applicable, Minimum Thickness for Activation 3/16 in, Minimum Thickness for Maximum Load Capacity 3/16 in, Activation Mechanism Pry-Off Handle, Magnet Length 6 1/2 in, Magnet Width 4 1/2 in, Magnet Height 1 5/8 in, Overall Length 11 in, Overall Width 5 5/8 in, Overall Height 5 in, Bail Inside Width 2 3/4 in, Bail Inside Length 2 3/4 in, Handle Length 11 3/8 in, Minimum Operating Temperature -148 Degrees F

Restrictions

  • Hazardous material
